Discussion Starter · #1 · (Edited)
On Sept 28 2015, I dismantled the river. It has been replaced it with planters watered through water mat wicks. It starts at post #47
7 Jul 2015 : it's now up and running.

This was original plants.
List of current plants:
-Polka Dots
-Fittonia
-Wandering Jew
-Pothos
-Croton
-Alternanthera reineckii
-Hymenocallis lirisome
-Glossos
-African Violet, added 9 ul 2015
[STRIKE]-Spider Plant[/STRIKE], added 9 Jul 2015 - Dead 29 Jul 2015
-Calla Lilies (Zantedeschia) [in bulbs as of 9 Jul 2015]
-Rumex sangioneus, added 11 Jul 2015
-Equisetum scirpoides, added 11 Jul 2015
===================
That would be my first journal here. I have no clue how disciplined I will be at updating this, but let me give it a shot.

This little river will be installed atop my 75 gallon tank. The river is the same length as the tank; 48 inches. It is about 5 inches wide and just over 1.5 inches high. It's not high, it will be low flow river with of course plants in it. Bed will be lavarock with maybe some pieces of drift wood.

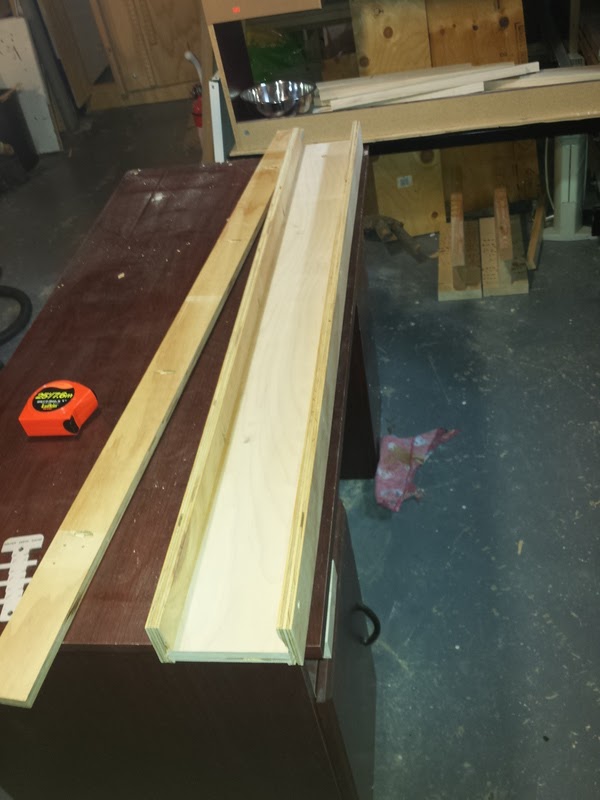

This is the barebone box without the ends. Because it's dadoes, just wanted to do a dry fit before glueing the parts together.





This is the outflow. Water will return to the tanks through this small opening.

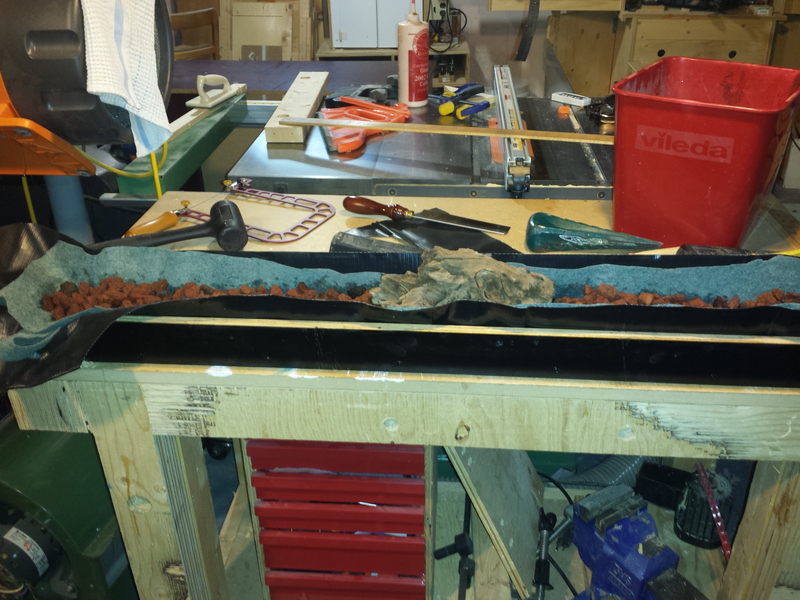

This is some arrangements in progress. I seived all the lava rock I have to get some smaller ones. I am a little short in rocks. I will throw some larger ones int. I painted and varnished the outside of the wooden box. The inside is line with a PVC pond liner. Then I place a layer of geotextile then the rocks.



·
Registered
Joined
·
5,934 Posts
Interesting beginning. You might want to build in an overflow near where the water
enters the box. Never know when plants may block it somewhere. I presume it to be filled by a mechanical pump. That pump won't know it's blocked. Come home to a floor full
of water.


·
Registered
Joined
·
824 Posts
Discussion Starter · #4 ·
Interesting beginning. You might want to build in an overflow near where the water
enters the box. Never know when plants may block it somewhere. I presume it to be filled by a mechanical pump. That pump won't know it's blocked. Come home to a floor full
of water.
Good idea. I guess I will make an opening like the one I did but in the other end. And just a little higher so the primary is the one at the opposite end.

River will be alimented through the output of the Eheim 2215. I will have a better idea of the flow when I try it out.


·
Registered
Joined
·
1,403 Posts
Seems a little shallow, think about how much water level changes in a track with an overflow... My vote would've been for 2.5 inch sides... Gives you more root space for plants, as well as more space between the top of the trough and the water level... As was already mentioned a flooded for would suck


·
Registered
Joined
·
824 Posts
Discussion Starter · #6 ·
Seems a little shallow, think about how much water level changes in a track with an overflow... My vote would've been for 2.5 inch sides... Gives you more root space for plants, as well as more space between the top of the trough and the water level... As was already mentioned a flooded for would suck
Noted, that would be mod no 2. Considering I probably have an average of 2 inches of substrate in the tank, it's prbably reasonable to have that in the river. I will make it higher and probably angle it toward the outside


·
Registered
Joined
·
824 Posts
Discussion Starter · #8 ·
There has been some modifications. I did not like the outflows. They take too much real estate over the tank. It would have been perfect if the river had been sitting further back but I wanted it right on top. I installed two bulkheads instead. I lined the inside of the bulkheads with some textile to kill the sound and eliminate splashes.

I did a leak test overnight. All seem ok. I added some raiser blocks to give place for the filter intake.
Now I need more plants. May have to go shopping soon.

One of the bulkhead.


These empty pill containers fit perfectly in the bulkhead. Just need to cut to length to get some water level in the river bed.
This is the leak test.


Checking how things go from the filter output.


Bulkhead fitted with a piece of geotextile to smooth the flow. And allow snails to climb in :).


Some lava rock in the river bed. Will adjust the amount as plants are placed in.


And finally some plants stolen from other tanks. I need more plants.


·
Registered
Joined
·
2,862 Posts
This is the same as a aquaponics set up. Not sure if you've heard of that or not. If you haven't you should look into them, perhaps you can find some of their ideas useful and decide to incorporate them into your project (substrate and designs of planter box).

I've been wanting to do a aquaponic set up on my tank for some time now to grow vegetables, but haven't made the effort yet.

From the title I thought it was going to be a over-tank sloped (to get the downstream river current effect), skinny 4ft long tank with hillstream fish :)
Great project nonetheless Mario


·
Registered
Joined
·
824 Posts
Discussion Starter · #16 ·
This is the same as a aquaponics set up. Not sure if you've heard of that or not. If you haven't you should look into them, perhaps you can find some of their ideas useful and decide to incorporate them into your project (substrate and designs of planter box).

I've been wanting to do a aquaponic set up on my tank for some time now to grow vegetables, but haven't made the effort yet.

From the title I thought it was going to be a over-tank sloped (to get the downstream river current effect), skinny 4ft long tank with hillstream fish :)
Great project nonetheless Mario
I heard of the term aquaponic recently. But I was mostly inspired by people that use similar set up here. Some use planters some use plastic tool boxes. I decided to customize mine.

The title is misleading a bit but it draws curiosity . It's work in progress. I can/will eventually make it bigger. It's a journey. interestingly enough I have hillstream loaches in the tank lol.
