Beamswork DA FSPEC and DHL 6500k PAR/LUX/Kelvin/PUR Data

188354 Views 371 Replies 85 Participants Last post by dow, Jun 14, 2020

clownplanted

Discussion Starter · Apr 25, 2017 (Edited)

48

Hi Everyone. So today I had the pleasure of being able to get par data for the Beamswork DA FSPEC LED and also the Beamswork DHL 30 6500K. I have one of each 30" and also 48". So for the Beamswork DHL and DA FSPEC 30" long lights test I used a 20 Gallon long tank. So from Light to sensor the furthest I was able to go was 13". For the 48" DHL and DA FSPEC Lights I used my 60 gallon 24" tall tank. I must say I am quite impressed as to how powerful these Beamswork lights are. This is quite some PAR that they are putting out to say the least. So without further delay lets get the party started :nerd: :wink2:

Here is the overview graph of the two 30" lights and two 48" lights PAR data. Below is the specific reading per debth.

First sample I took par data of the DA FSPEC at 13" with no water so we can get a feel for the difference how much water amplifies par.

30" DA FSPEC only

13" No water 0" offset
70 par

13" 0" Offset(This and rest of the readings are in Water)
100 Par

13" 6" Offset
99 Par

12" 0" Offset
111 Par

12" 6" Offset
91 Par

10" 0" Offset
113 Par

10" 6" Offset
99 Par

8" 0" Offset
124 Par

6" 0" Offset
164 Par

DHL 6500K 30" only

13" 0" Offset
85 Par

13" 6" Offset
81 Par

12" 0" Offset
91 Par

10" 0" Offset
110 Par

10" 6" Offset
83 Par

8" 0" Offset
139 Par

8" 6" Offset
102 Par

6" 0" Offset
186 Par

DA FSPEC and DHL combined

13" 0" Offset
174 Par

12" 0" Offset
187 Par

10" 0" Offset
205 Par

8" 0" Offset
233 Par

6" 0" Offset
235 Par

DA FSPEC 48"
22" 0" Offset
PAR 42

20" 0" Offset
Par 44

18" 0" Offset
Par 48

16" 0" Offset
Par 51

14" 0" Offset
Par 52

12" 0" Offset
Par 55

10" 0" Offset
Par 59

8" 0" Offset
Par 63

DHL 5500K 48"
22" 0" Offset
PAR 56

20" 0" Offset
PAR 60

18" 0" Offset
PAR 65

16" 0" Offset
PAR 67

14" 0" Offset
PAR 71

12" 0" Offset
PAR 73

10" 0" Offset
PAR 81

8" 0" Offset
PAR 89

DA 48" and DHL 48" Combined

22" 0" Offset
PAR 82

20" 0" Offset
PAR 83

18" 0" Offset
PAR 91

16" 0" Offset
PAR 96

14" 0" Offset
PAR 112

12" 0" Offset
PAR 116

10" 0" Offset
PAR 129

8" 0" Offset
PAR 135

To show the brightness for all the different lights. Thanks @jeffkrol for helping put the below tank shot pics together like this. Makes comparing brightness MUCH easier

For those that want to be able to dim the lights this dimmer works for both models both sizes. https://www.amazon.com/gp/product/B008FC04I8/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

See less See more

Reactions: 4

1 - 20 of 372 Posts

awesometim1

· #2 · Apr 25, 2017

Nice! Hopefully this proves beamswork is just as good as finnex lights in the par department, if not better. I own one of these and it's super bright. Thank you for the PAR readings.

Sent from my iPhone using Tapatalk

Reactions: 1

clownplanted

Discussion Starter · #3 · Apr 25, 2017

awesometim1 said:
Nice! Hopefully this proves beamswork is just as good as finnex lights in the par department, if not better. I own one of these and it's super bright. Thank you for the PAR readings.

Sent from my iPhone using Tapatalk

I will be able to prove if it is or not better par wise than the finnex 24/7 tomorrow. It's play with kids time for now. Hopefully this data helps.

Sent from my iPhone using Tapatalk

Reactions: 1

milesm

· #4 · Apr 25, 2017 (Edited)

thanks for posting the par data. one question, par for the da fspec at 13" 6" offset is higher than 13" 0". could you possibly re-check? thanks.

there is at least one other example where the par was higher at the offset than directly under, namely dhl 65k at 13".

rival to finnex? par-wise i'd say rival to kessil a80 tuna sun!

jeffkrol

· #5 · Apr 26, 2017 (Edited)

Fie comparison:

Side note: Lux to PAR conversion looks pretty steady at LUX / 37-ish = PPFD.. but low compared to old estimates
Divisor is expected to be 67-ish.. Hmmm..odd.
PAR values would be 1/2 those approx..
Not trying to throw any wrenches in here.. Seneye has been tested and compared to other PAR meters and found accurate.
http://www.reefcentral.com/forums/showthread.php?t=2626700&highlight=seneye+apogee

From this data and the above link comparing it to an Apogee..the ratio is the same and PAR is accurate.
Either the old "assumption" is way off or Seneye underestimates LUX..

Get a phone app for lux.. see if it compares (might use the same tech though..)
A real LUX meter would be more definitive..

At this point can't say PAR is wrong..
Then the only current idea is the Seneye is under-reporting LUX by almost a factor of 2..

See less See more

Reactions: 3

clownplanted

Discussion Starter · #6 · Apr 26, 2017

Updated data and created a PAR overview for the two lights

clownplanted

Discussion Starter · #7 · Apr 26, 2017

Ok so this was a lot harder than I thought it would be. I got the DHL and DA FSPEC 48" Data done. I had to do a serious trimming because some plants and especially my swords were just blocking too much light. The 12"+ Sword leaves are no joke. So I updated the first post with the Beamswork DA FSPEC and DHL 6500k 48" lights on my 60 gallon high tank. I also udpated the overview PAR graph at the beginning to show both the 30" and 48" DA FSPEC and DHL lights. I used a mount to ensure that the sensor was as stable as possible at all locations. Enjoy

jeffkrol

· #8 · Apr 26, 2017

clownplanted said:
Ok so this was a lot harder than I thought it would be. I got the DHL and DA FSPEC 48" Data done. I had to do a serious trimming because some plants and especially my swords were just blocking too much light. The 12"+ Sword leaves are no joke. So I updated the first post with the Beamswork DA FSPEC and DHL 6500k 48" lights on my 60 gallon high tank. I also udpated the overview PAR graph at the beginning to show both the 30" and 48" DA FSPEC and DHL lights. I used a mount to ensure that the sensor was as stable as possible at all locations. Enjoy

now for true accuracy and to become junior scientist... just repeat it 1/2 doz. times...

clownplanted

Discussion Starter · #9 · Apr 26, 2017

jeffkrol said:
now for true accuracy and to become junior scientist... just repeat it 1/2 doz. times...

Lol I know right :wink2: Oh if you want to add this data to your existing graph feel free.

clownplanted

Discussion Starter · #10 · Apr 26, 2017

2

In case you all were wondering which light or combo of lights I am going to use for my 60 gallon well so I did not have to decide between any of them I am using all three on my tank. After all I like the Beamswork lights and also my Finnex 24/7.

See less See more

Dragonfish

· #11 · Apr 26, 2017

How do you like the color on the FSPEC? Looks like the main LEDs are 10,000K, is it too cool by itself? I'm thinking of using this light on a 60 gallon cube, and only need lowish light.

milesm

· #12 · Apr 26, 2017

what's the total number of watts for all 3 fixtures? thanks.

clownplanted

Discussion Starter · #13 · Apr 26, 2017

2

Dragonfish said:
How do you like the color on the FSPEC? Looks like the main LEDs are 10,000K, is it too cool by itself? I'm thinking of using this light on a 60 gallon cube, and only need lowish light.

I actually like it. It is the brightest of all three lights. It is actually the coolest of the three lights. Finnex hottest followers by warm dhl. Yes the fspec is 10,000k which some will not like but I actually do. My plants absolutely love these lights and are pearling like I have never seen them.

Sent from my iPhone using Tapatalk

See less See more

clownplanted

Discussion Starter · #14 · Apr 26, 2017

milesm said:
what's the total number of watts for all 3 fixtures? thanks.

Finnex 24/7 is 46.2 Watts
Beamswork DHL 6500K is 63 Watts
Beamswork DA FSPEC is 60 Watts

Total watts with all three is 169.2

Dragonfish

· #15 · Apr 26, 2017

FTS with just the FSPEC? Please?

clownplanted

Discussion Starter · #16 · Apr 26, 2017 (Edited)

Dragonfish said:
FTS with just the FSPEC? Please?

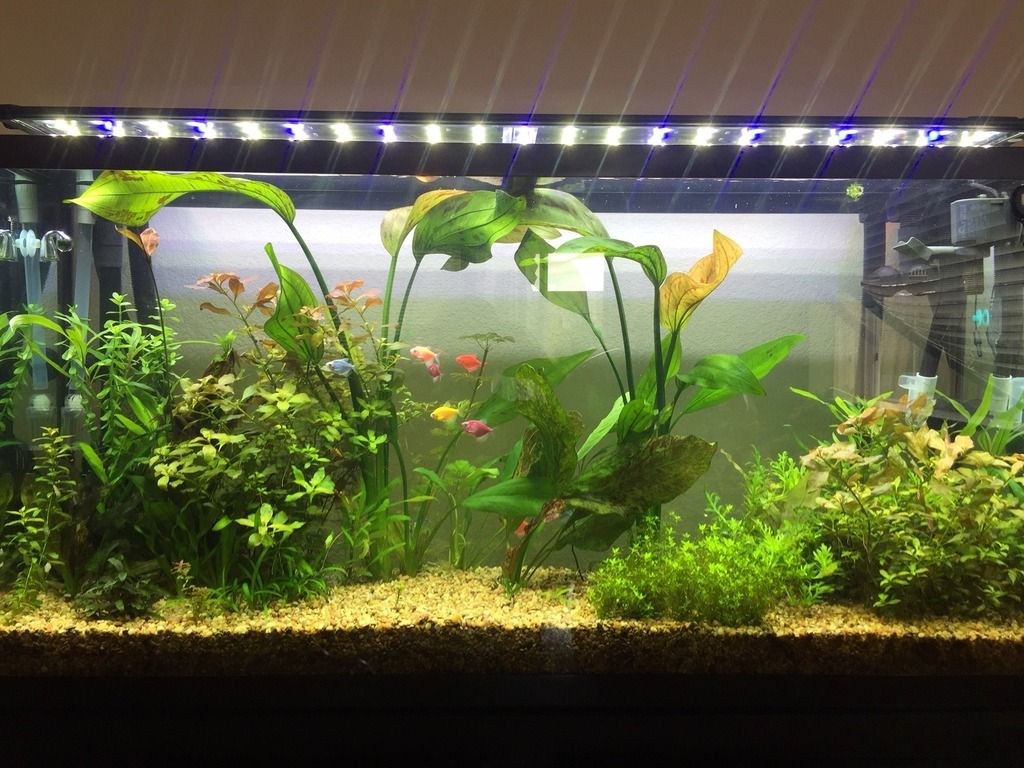

Sorry but does FTS mean pic? Sorry about the glare.

Sent from my iPhone using Tapatalk

See less See more

Dragonfish

· #17 · Apr 26, 2017

OH! Sorry Full Tank Shot. Thanks!

Reactions: 1

clownplanted

Discussion Starter · #18 · Apr 26, 2017

Dragonfish said:
OH! Sorry Full Tank Shot. Thanks!

Lol no problem I should of known. Well there you go. I really like the brightness of the fspec. And the fact it has all the white, blue, green, and red led's. and actually I was wrong above the dhl is a bit brighter to the eyes.

Sent from my iPhone using Tapatalk

jeffkrol

· #19 · Apr 26, 2017

Need a shot of each for color comparison..

See less See more

clownplanted

Discussion Starter · #20 · Apr 26, 2017 (Edited)

Of course it wouldnt be a full comparison without the shots of different lights. Thanks @jeffkrol

See less See more
