My DIY 36" LED ADA Fixture and Stand for my 48G Rimless

I love the ADA look but can't afford the ADA price so I decided to DIY everything I could which includes the LED Light Fixture and the DIY Stand

If you guys want to know more about my light and stand I'm usually on the SCAPE site



-------------------------------------------------------5/14/11 UPDATE---------------------------------------------------

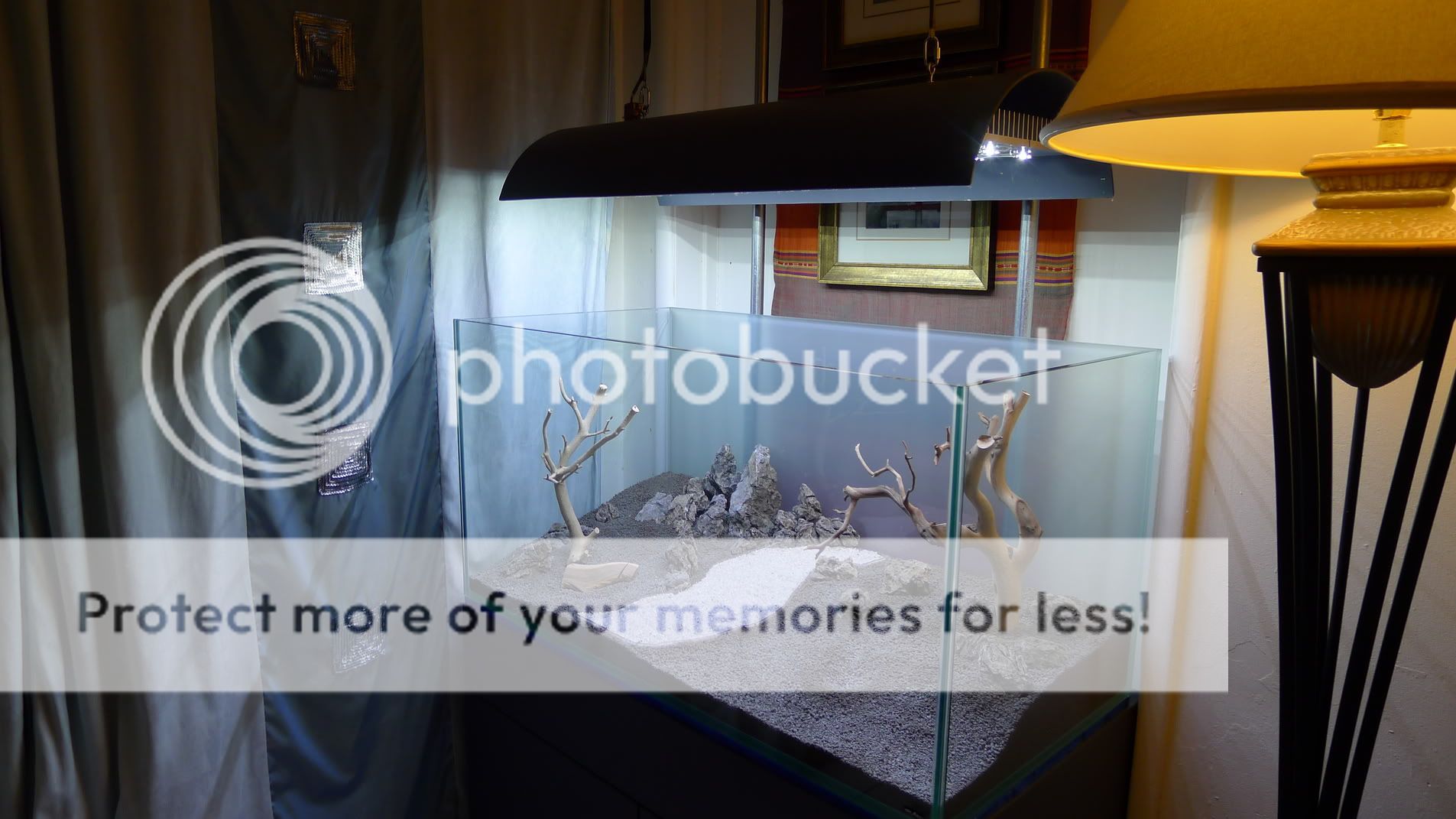

Started planting the tank in April and this is what I have so far. Still a lot of more planting and rock rearrangements needed but overall I'm very happy with the lights, plants are pearling like crazy but I might have to turn down the lights a bit as algae might become a problem. Should santized the Fissiden's more before introducing it to the tank oh well...




I think I need a powerhead. All this pearling is causing the surface to look too fizzy.



Supplies

Basic stuff
$300-----36x Cree XP-G LEDs
$100-----03x Dimmable Meanwell LED Drivers
$100-----01x Heatsink
$20------02x 120mm Fans

Total after Shipping and Tax = about $520

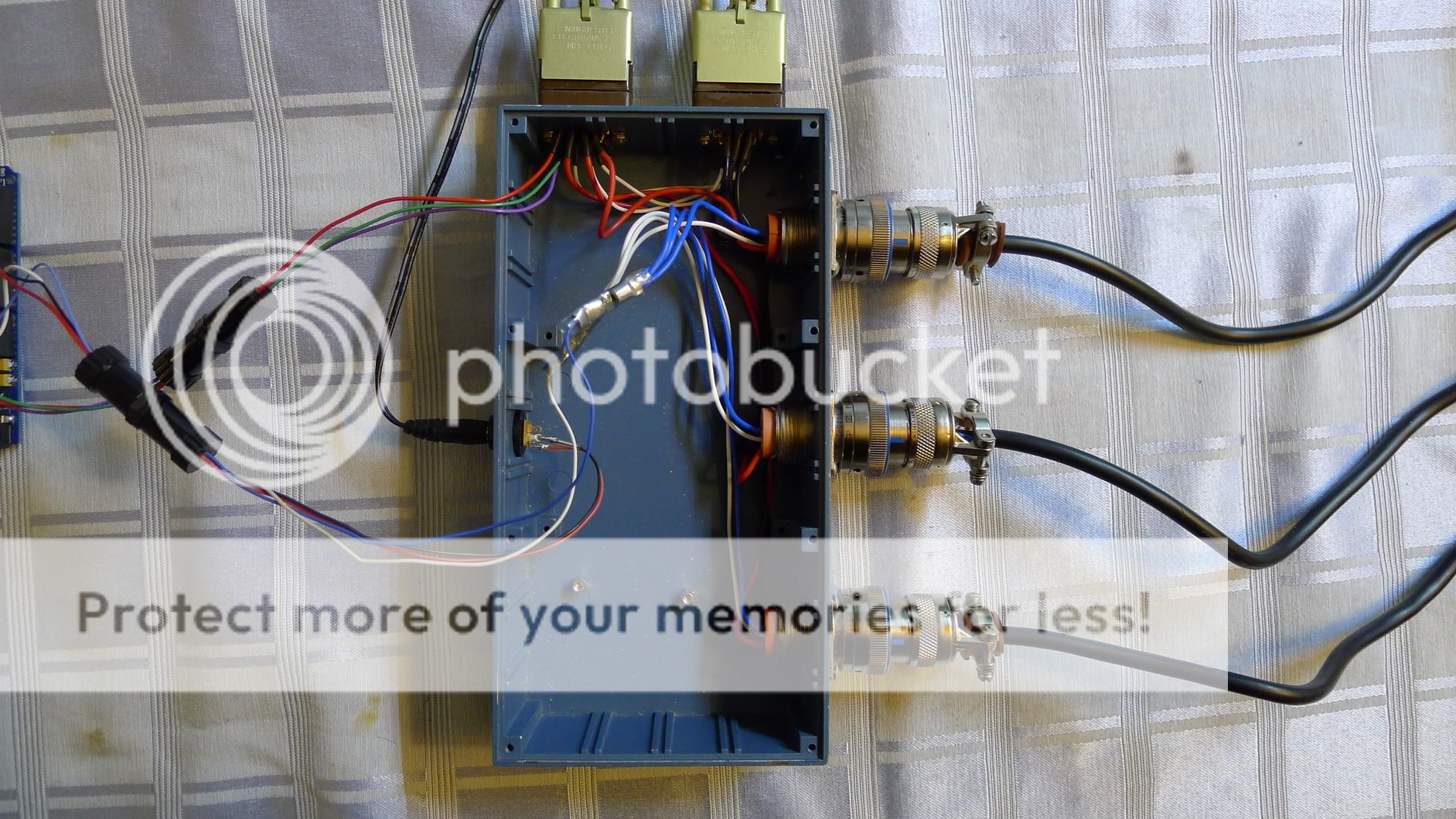

Dimming Circuit

$30----- 10 Turns 10K Pot
$50-----Arduino Mega
$2------Small PCB
$3------LM317 Transistor
$2------2222N2 Transistor
$1------1.5K Resistor
$1------10K Resistor
$4------On/Off Buttons

The rest of the stuff was various project boxes and connectors I had left over from my other projects


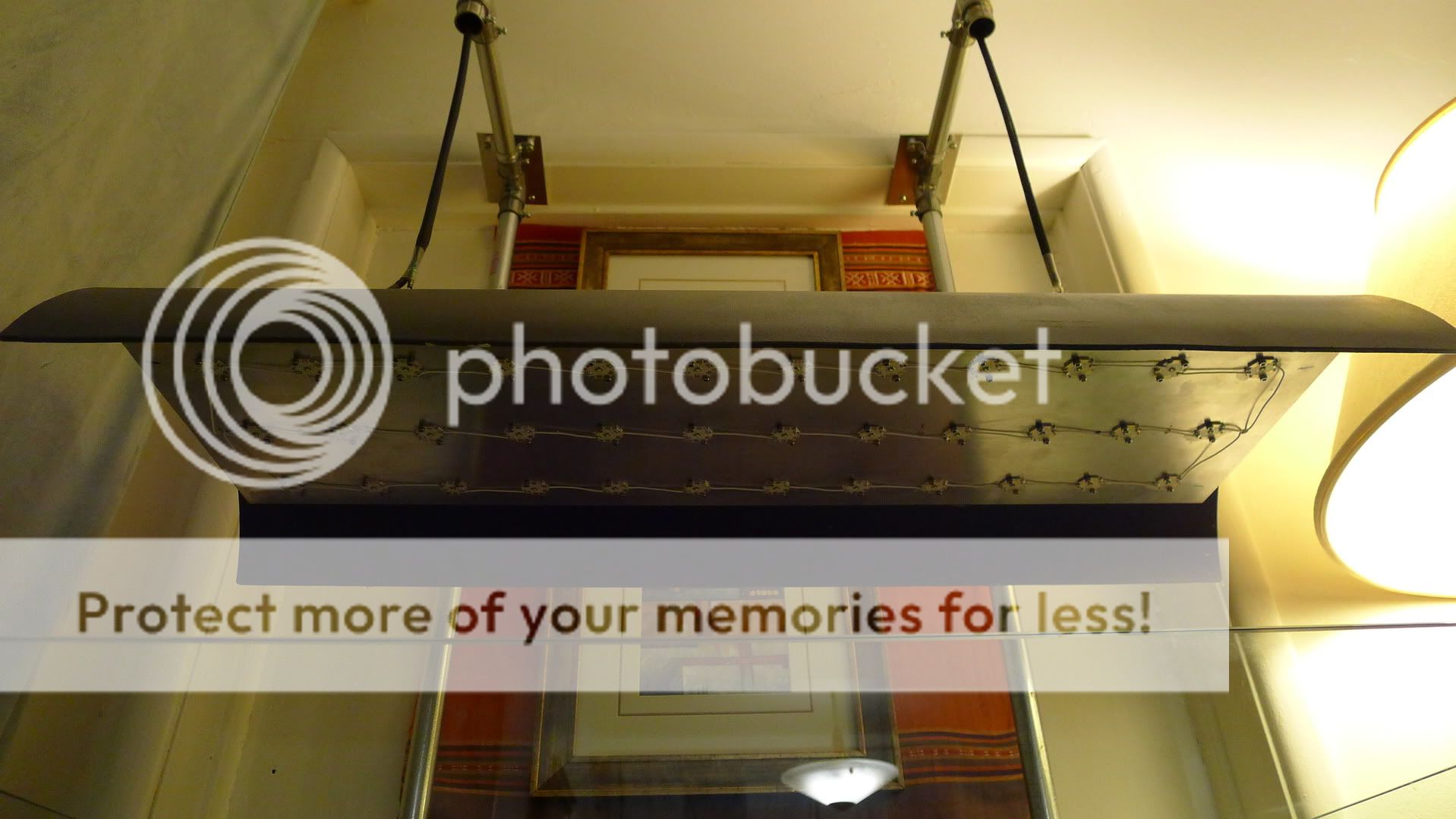

The hood is a custom made Aluminum Panel bent 130 degrees and painted the same color as the stand. Before anyone ask where they can get such a panel, I can tell you its not gonna be cheap. I was EXTREMELY lucky to have come across this panel which was left over from a construction site.

Before I found this piece I called around and most places charge $$$ just for the aluminum itself. Just having it cut down costed atleast $75 per straight cut at most metal places in LA. I don't even know where you could find a place that would be able to bend the panel. Anyways best bet it to call metal fab places and get an estimate.


Tools
Drill Press, 20 Gauge Wire, Drill bits, Taps, Thermal Compound, Stand Offs Screws, Soldering Iron, and Drilling Lubricant , Conduit, Elbows


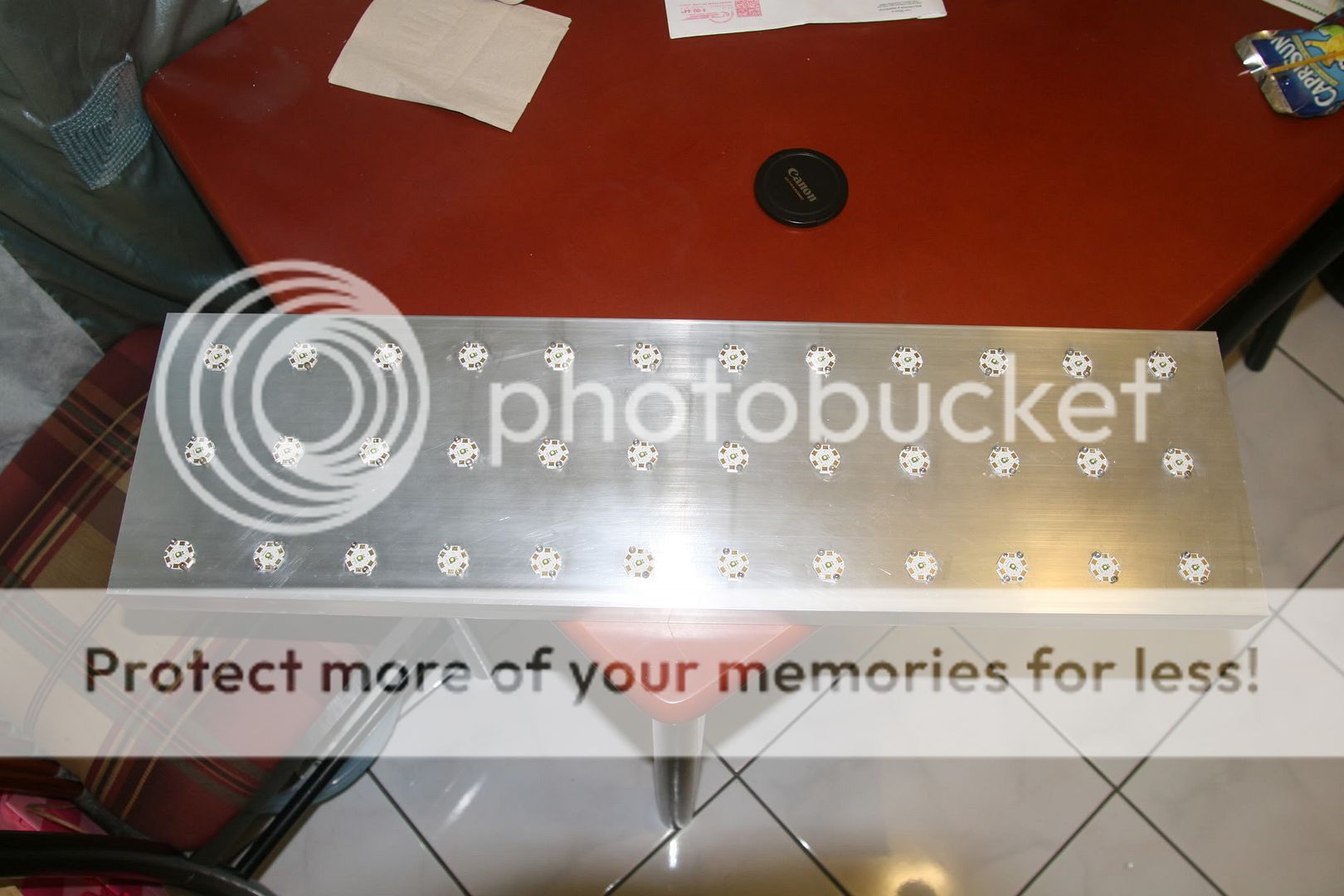

1. Drill and Tap the Heatsink
I made a template out of a giant washer and a center punch to mark where to drill. It made things much easier. Also when tapping the heatsink make sure you use a Bottom Tap and not a Taper Tap

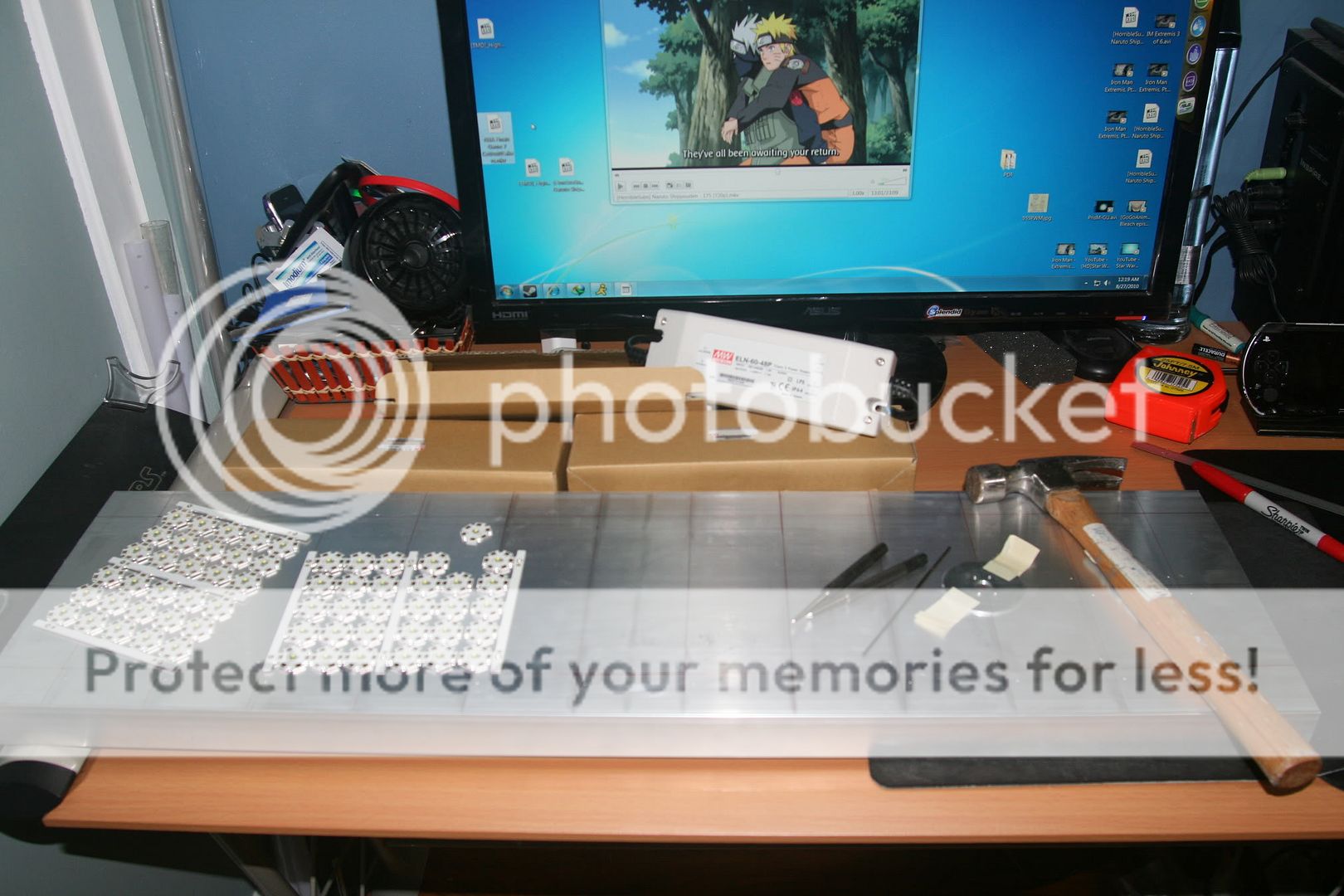

2. Mount the LEDs
I ended up breaking a couple of drill bits and a tap or 2 due to being impatient... Make sure you go real slow use ALOT of lubricant when drilling and especially when tapping... I used left over Artic Silver and Zalman Ceramic Thermal Compound under the LEDs to keep them nice and frosty. Decided to use Hex Screws since they look nicer and don't touch the contacts on the LED star.

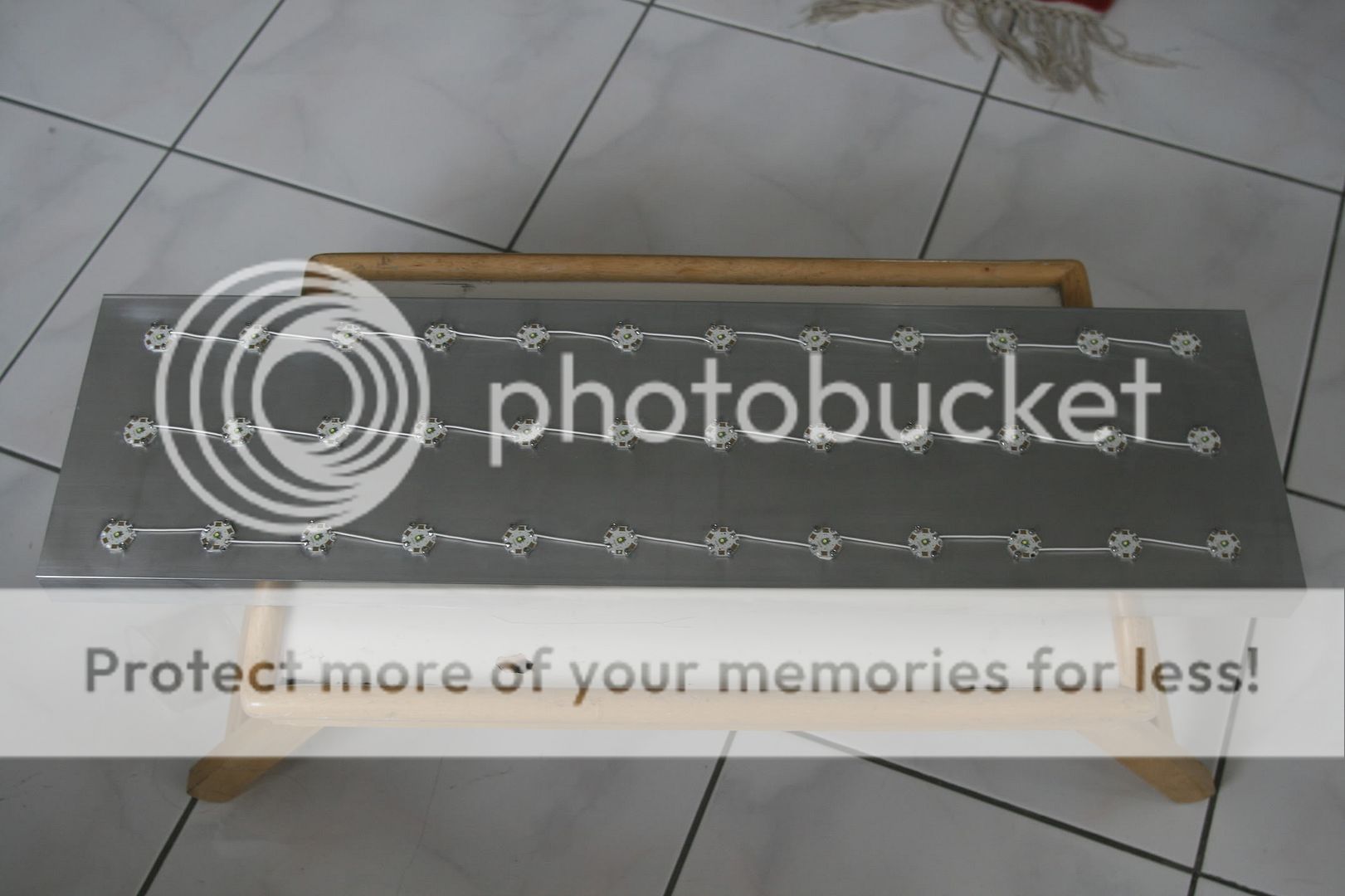

3. Wire the LEDs in Series of 12
When I started wiring I realized I should have drilled and tap my LEDs in a + pattern instead of an X pattern to make the wiring nicer...oh well...
