250G High Tech Tank


There have been several mentions of a future, big tank in some of my posts. My 70G tank was actually re-setup to be a proving/testing ground for learning to run a higher tech tank so this big tank would not start out as a huge disaster. Well, the time has finally arrived to start this project. I received a call today from the tank builder, Bow Valley Aquarium in Calgary, Alberta, Canada, that my tank has been built and will ship to me on Monday. All I can say is finally! The builder selection is a long story, and if you ever want my opinion please send me an email.

Although I haven't actually received the tank yet, I have a few things that I am going to post before the big arrival. I've got a drawing of the tank back that I supplied to the builder.



The overall tank dimensions are 66" long x 26" wide x 36" tall. The tank will be 3/4" Starphire glass on the front and sides with a rimless eurobracing design. Clear silicone will be used for the joints and the background will be a navy blue laminated sheet. As you can see the tank has been drilled with five 2 3/8" drilled holes for water flow. The top two holes are for water return to the tank and the bottom three will be for overflows. The plan is to plumb the tank for silence using a U style overflow and a DIY custom spray bar for the returns.

I have been finishing my basement for a while and this aquarium will eventually be the center piece. I have put in some hardware already that I will post prior to the tanks arrival. The process so far has been a few months, but I will compress this into 1 or 2 posts. Hopefully, by then, the tank will have arrived and the real action will begin. I'm going to build a custom stand for it. I'm hoping to finish up with a fully automated tank with a foolproof, fail-safe design. I'm sure there will be a few mishaps as things get worked out. Just hopefully none while I am asleep.

Anyone with any experience moving large glass tanks like this? I was thinking of calling a moving company to do it since I figure it will be over 500lbs.
__________________
Consigliere is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 09-26-2009, 07:12 AM   #2
yikesjason
Wannabe Guru

yikesjason's Avatar

PTrader: (71/100%)
Join Date: Jul 2008
Location: Portland, OR
Posts: 1,591
Default

This looks like it should be a great build. I am looking forward to it. I love to see the big tanks.
yikesjason is offline   Reply With Quote Quick reply to this message
Old 09-26-2009, 12:56 PM   #3
sajata
Planted Tank Obsessed

sajata's Avatar

PTrader: (3/100%)
Join Date: Aug 2009
Location: Chester Springs, PA
Posts: 305
Default

do you plan automatic water changes?
what are the plans for the filtration?
lighting?
I guess I am rushing things...
in the process of building my own 60x16x24 acrylic.
sajata is offline   Reply With Quote Quick reply to this message
Old 09-26-2009, 01:17 PM   #4
Raul-7
Wannabe Guru

Raul-7's Avatar

PTrader: (4/100%)
Join Date: Oct 2003
Location: Lomita, CA
Posts: 1,691
Default

Very tall aquarium. I assume Altums are the chosen center-piece fish?

However, I don't get your plumbing design. You said you're going to be using U-style overflow boxes yet how can the bottom 3 be used for overflows. Unless I'm not getting something.
Raul-7 is offline   Reply With Quote Quick reply to this message
Old 09-26-2009, 09:21 PM   #5
Consigliere
Planted Member

PTrader: (0/0%)
Join Date: Mar 2009
Location: Canada
Posts: 165
Default

Definitely auto water changing for this one. No way I can do buckets on this scale. The plan for filtration is a custom sump build including about 30G of refugium for grow out/quarantine. Lighting will be 480W of T5HO with Giesmman bulbs and a DIY blue LED night light.

By overflows, I just meant plumbing overflows, not boxes. The piping will be U shaped overflow to achieve water level closer to the top of the glass. The system will be a custom design but based on some suggestions from the folks at monsteraquariums forum.
__________________
Consigliere is offline   Reply With Quote Quick reply to this message
Old 10-02-2009, 04:08 AM   #6
Consigliere
Planted Member

PTrader: (0/0%)
Join Date: Mar 2009
Location: Canada
Posts: 165
Default DIY Exhaust System

One of the things I am concious of with keeping tanks is the humidity they create. I have never experienced a tank as large as a 250G so I can only imagine the humidity it will create. I am trying to address this by exhausting the hood section of the tank out of the vicinity of the aquarium. Here I will have some photos and explanation of how I created an exhaust system in my unfinished basement that will allow me to exhaust the hot, humid tank air to 1) my furnace cold air return during the winter (improves heating efficiency and will help humidify the house during the super dry Canadian winters) or 2) outside using my dryer vent during the summer.

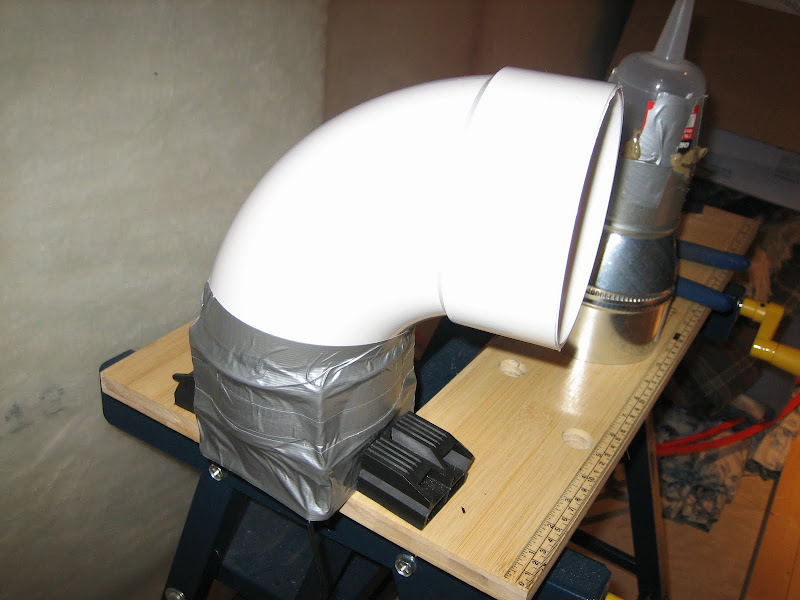

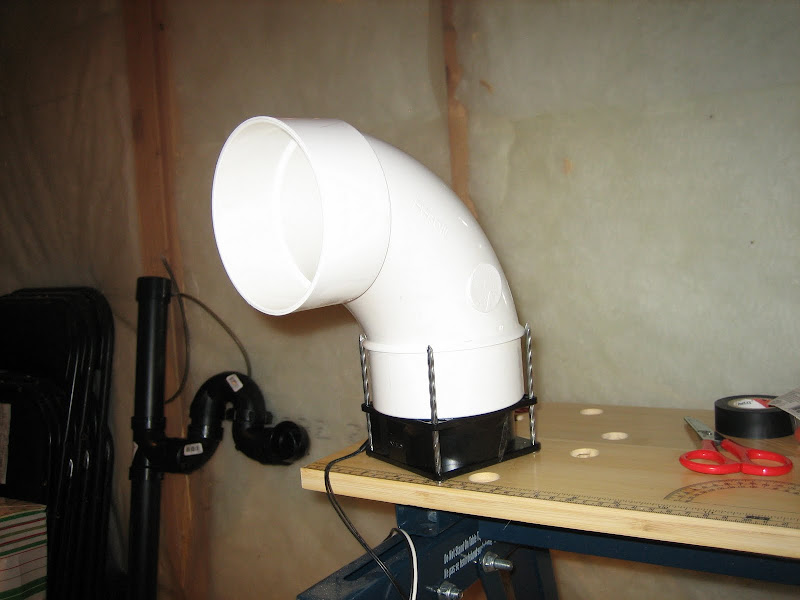

This system was put in months ago, before I started finishing my basement. To start, I had to put together the piece which will actually sit inside the hood and draw air. I am using a 120V 4" drive exhaust fan that was given to me as the first piece of hardware that will move air. I attached it to a 4" PVC elbow using some nails and construction adhesive. Once the adhesive dried, I wrapped it in duct tape to make the seal air tight.

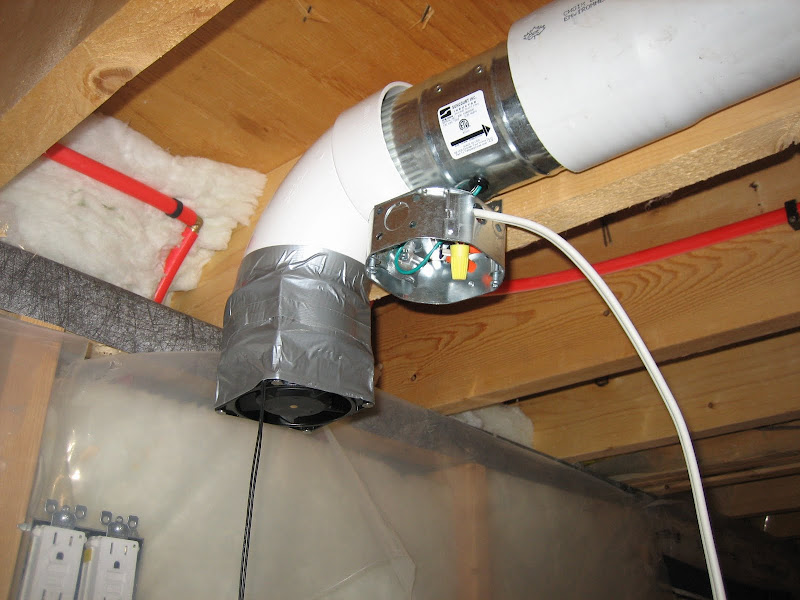

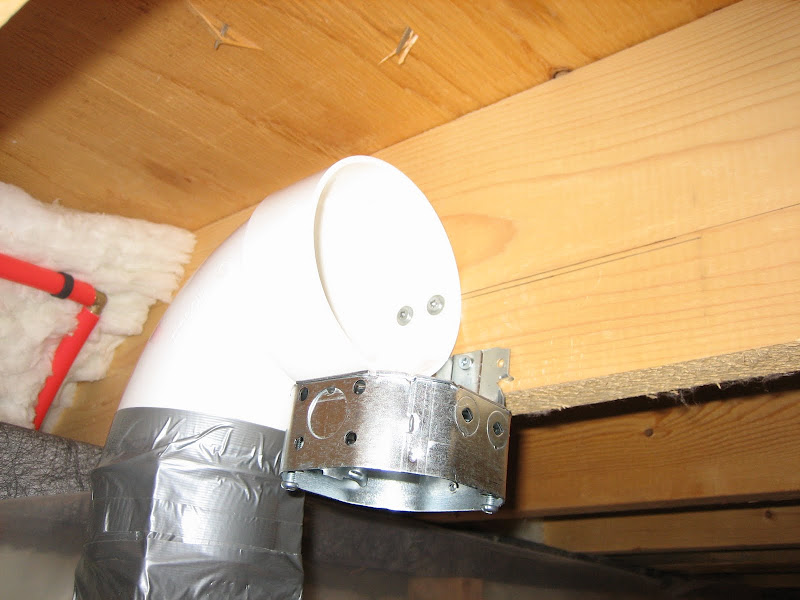

The next step was to mount the assembly to a floor joist and add an electrical junction to house the electrical connections for the exhaust fan and the flow boosting fan (to come). I drilled a couple holes into the PVC elbow and screwed it to a floor joist and mounted a standard light junction to the joist so that the junction was flush to the PVC elbow. This will give me access to the junction in the future since it will be below the ceiling drywall.

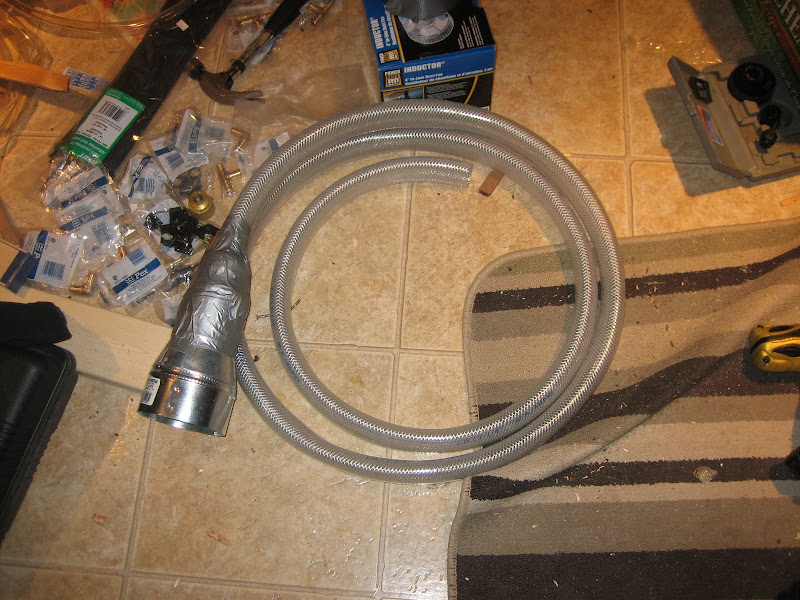

In all honesty, at this point I figured I just hook up some more PVC, and the drive exhaust fan would be able to overcome the head pressure and move the air from the one end of the system to the other. Boy was I wrong. I had no flow, so I had to figure out a good way to boost the pressure. Walking through Princess Auto I noticed furnace duct boosting fans. What do you know, they had a 120V 4" fan. Perfect! So I mounted the fan at the elbow and wired it up to a 120V electrical cord. In hindsight, I should've placed the boosting fan at a different spot but it works pretty well where it is. Attached to the boosting fan is length of 4" PVC that runs the length of the floor joist.

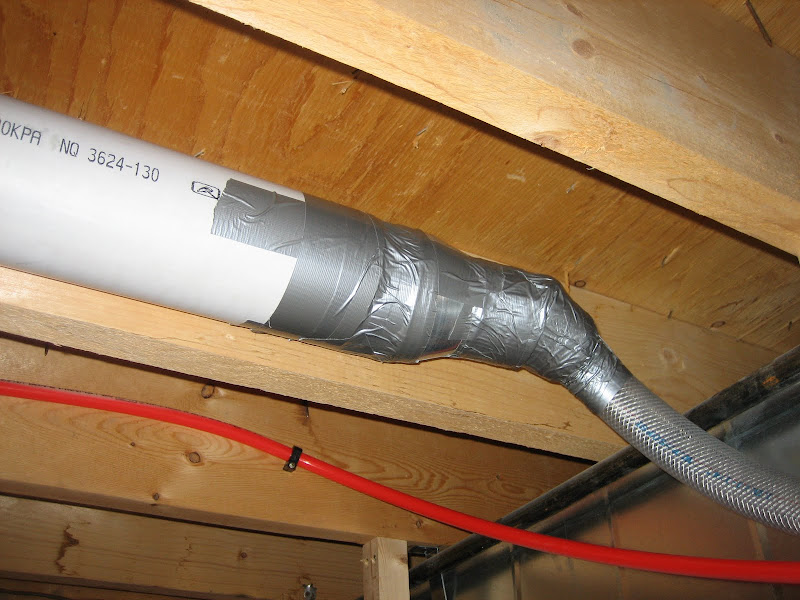

If you are wondering, yes that is 14-2 standard wire. It has since been replaced with 14-2 flexible outdoor wire. I used duct tape again to seal the PVC connections to the boosting fan. The long run of PVC was secured to the floor joist at each end the same way the PVC elbow was secured. The 4" PVC run took me to the tricky part of the project. I had to get the air from my future rec room, across the whole basement to where my furnace and dryer duct are. I had already boxed in my furnace duct work so I figured I could run a line next to the existing duct work without any problems. I used a modified funnel to taper the connection from the 4" PVC to a 1.5" flex hose that would carry the air the rest of the run. The braided flex hose creates a bit of an issue in terms of extra head pressure but I really didn't have much choice at this point. Here's the funnel adapter and it attached to the PVC with duct tape.





I don't have any photos of the termination of the whole system but there is a T connection with valving on each of the branches that allows me to run the air to my cold air return on my furnace during the winter or to my dryer duct during the summer. The whole system doesn't move a lot of air but enough that I think the humidity in the main room of the basement won't get out of control and it should help cool the lighting a little bit. It may have just been an interesting project and not particularly useful, but I figured with this setup I might as well go for everything I can think of rather than get the tank going and wish I had this or that.
__________________
Consigliere is offline   Reply With Quote Quick reply to this message
Old 10-09-2009, 11:14 PM   #7
jman
Planted Member

jman's Avatar

PTrader: (1/100%)
Join Date: Sep 2009
Location: Minnesota
Posts: 174
Default

What kind of fish are you thinking of? Discus?
jman is offline   Reply With Quote Quick reply to this message
Old 10-10-2009, 04:47 AM   #8
Consigliere
Planted Member

PTrader: (0/0%)
Join Date: Mar 2009
Location: Canada
Posts: 165
Default

Eventually a school of 12 -16 blue strain discus. Not sure what kind yet. To go with them 2 large schools of smaller tetras. Probably cardinals and harlequin raspboras. Or maybe some rummy nose. Not really to sure exactly yet.
__________________
Consigliere is offline   Reply With Quote Quick reply to this message
Old 10-10-2009, 04:50 AM   #9
xximanoobxx
Planted Member

xximanoobxx's Avatar

PTrader: (8/100%)
Join Date: Aug 2008
Location: Sunnyvale/San Luis Obispo, California
Posts: 270
Send a message via AIM to xximanoobxx
Default

This would be a surely awesome tank build.
Looking forward to it
__________________
xximanoobxx is offline   Reply With Quote Quick reply to this message
Old 10-10-2009, 06:25 AM   #10
Down_Shift
Wannabe Guru

PTrader: (23/100%)
Join Date: Sep 2008
Location: Beantown
Posts: 1,539
Send a message via AIM to Down_Shift
Default

wow this is going to be amazing
Down_Shift is offline   Reply With Quote Quick reply to this message
Old 10-11-2009, 05:01 AM   #11
Digsy
humble bumble

Digsy's Avatar

PTrader: (164/100%)
Join Date: Mar 2006
Location: Washington
Posts: 1,838
Default

I'm looking forward to seeing another discus tank, especially such a large one!
__________________
Digsy is offline   Reply With Quote Quick reply to this message
Old 10-23-2009, 11:12 PM   #12
Consigliere
Planted Member

PTrader: (0/0%)
Join Date: Mar 2009
Location: Canada
Posts: 165
Default

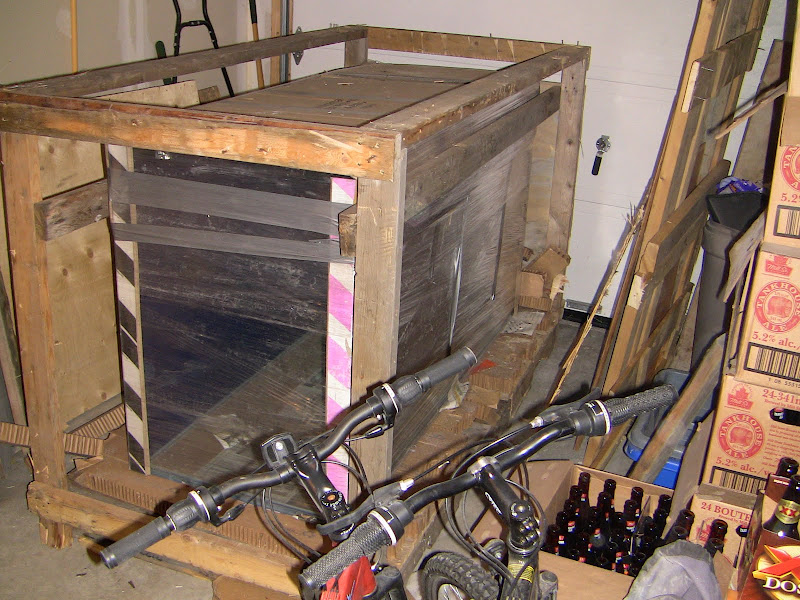

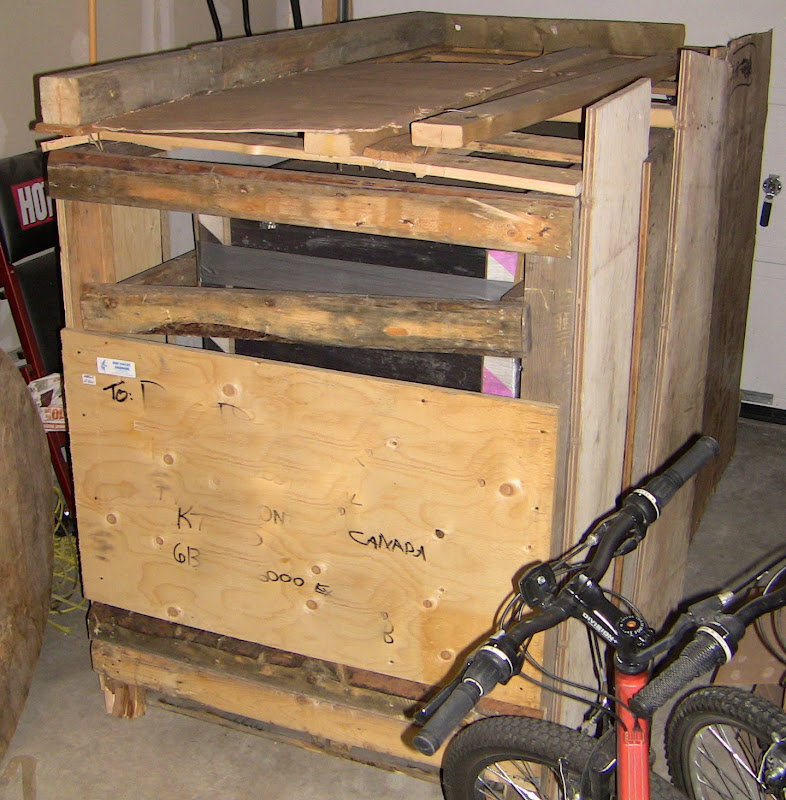

After almost 7 months of waiting for this tank, it has finally arrived. Not much to see yet since it is still in the crate but here it is.



With most of the crate material removed. Man what a stressful job messing around with crowbars and prybars with a giant glass box inches away.

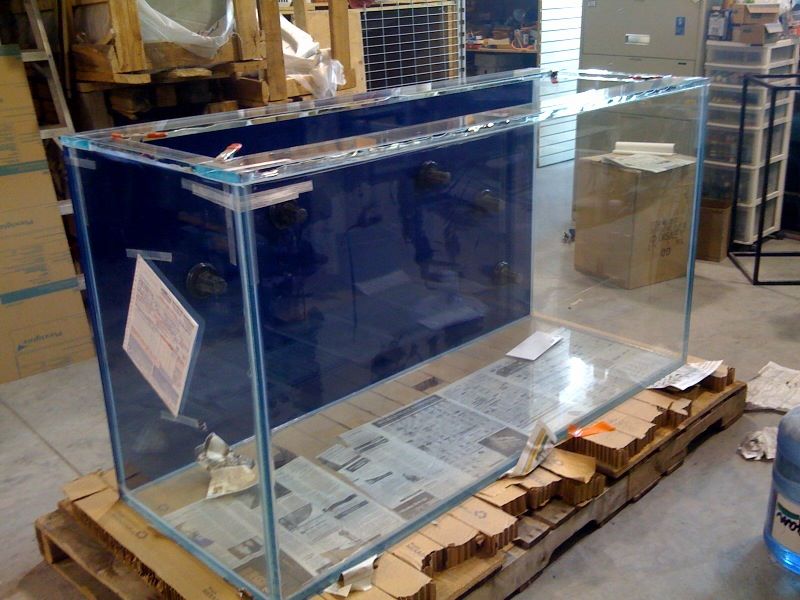

Here's a shot of it the builder sent me prior to shipping. It's looking pretty good.

__________________

Last edited by Consigliere; 10-24-2009 at 02:08 AM..
Consigliere is offline   Reply With Quote Quick reply to this message
Old 10-23-2009, 11:20 PM   #13
hoa101
Algae Grower

hoa101's Avatar

PTrader: (3/100%)
Join Date: Aug 2009
Location: VA
Posts: 130
Default

I am not exactly the most experienced guy around, but how does one do maintenance, plant, etc, in a tank that is 3 feet deep??

Beautiful-looking tank though, although it is hard to get a sense of the scale with nothing but the tank sitting there.
hoa101 is offline   Reply With Quote Quick reply to this message
Old 10-23-2009, 11:22 PM   #14
Consigliere
Planted Member

PTrader: (0/0%)
Join Date: Mar 2009
Location: Canada
Posts: 165
Default

Long arms, long tools and a step stool will go a long way for maintenance.

The scale is shown in the first post, ie dimensioned drawing.
__________________
Consigliere is offline   Reply With Quote Quick reply to this message
Old 10-23-2009, 11:39 PM   #15
hoa101
Algae Grower

hoa101's Avatar

PTrader: (3/100%)
Join Date: Aug 2009
Location: VA
Posts: 130
Default

Jeebus, that does not sound like fun. I'll leave the 3' deep tanks to better men than I.

By scale I meant, like a person standing next to it. I am a former surfer, so bear with me. You know how if you look at a picture of a wave with nobody on it, it just looks like every other wave? Could be 3 ft, could be 6ft, could be 12ft - there is no sense of scale... However, stick a surfer on that wave and suddenly you look at the pic and say, "Holy @$%&! That is sick, brah!"

So, a picture of a fish tank is a picture of a fish tank, but some tanks are TANKS, if you take my meaning.
