$2 Fluval Edge DIY Mylar Balloon Reflector


Here's what I did with my Fluval Edge canopy and a balloon and so can you...

Lights:
- upgraded to LEDs, replacing the Halogen Bulbs.
- took apart an ikea floor lamp and used the socket and cord to zip tie a 10w Coralife mini compact.

I zip-tied the bulb to the provided canopy like many others have done. I used electrical tape to secure some aluminum foil to the lighting arm where the bulb touches in order to add some heat protection.

Reflector:

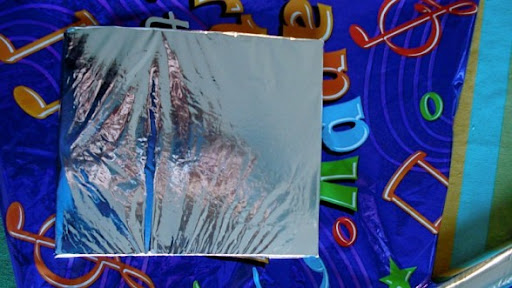

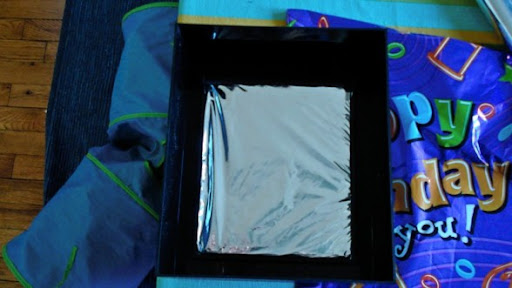

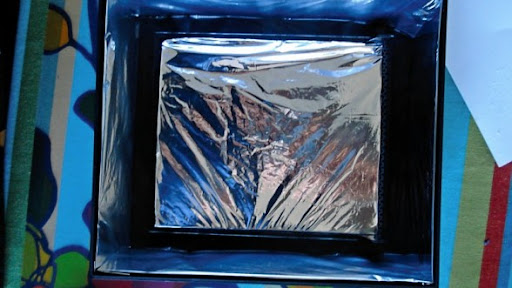

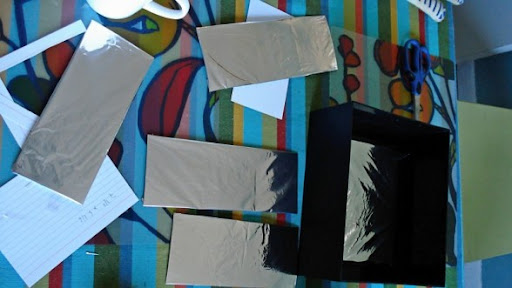

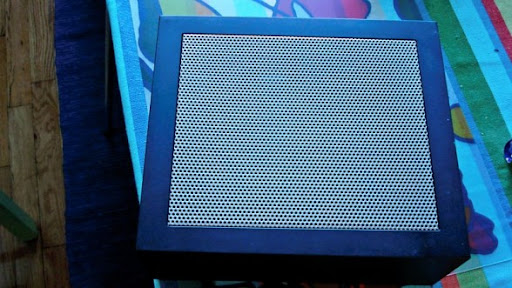

- I took apart a Mylar balloon and turned the hood that came with the aquarium into a giant Mylar reflector. A cheap alternative to maximizing light. The mylar shields the plastic from getting too hot where the bulb touches. The reflector really helps with the compact fluorescent bulb. The angle isn't ideal but there's only so much you can cram under the fluval canopy.

The entire cost of this reflector $2















Check out my Fluval Edge Journal


__________________

Last edited by Fat Guy; 01-25-2010 at 05:48 AM..
Fat Guy is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 01-24-2010, 08:36 PM   #2
C2C
Wannabe Guru

C2C's Avatar

PTrader: (16/100%)
Join Date: Apr 2009
Location: California
Posts: 1,129
Default

good idea
i hope that space is enough
__________________
Filstar Pimp #154
XP2
XP3
C2C is offline   Reply With Quote Quick reply to this message
Old 02-23-2010, 04:33 PM   #3
Gatekeeper
Planted Tank VIP

Gatekeeper's Avatar

PTrader: (93/100%)
Join Date: Feb 2007
Location: Earth
Posts: 6,562
Default

Interesting. Any problems with heat?
__________________
Gatekeeper is offline   Reply With Quote Quick reply to this message
Old 02-23-2010, 06:33 PM   #4
colinlp
Algae Grower

PTrader: (0/0%)
Join Date: Dec 2009
Location: UK
Posts: 69
Default

If you were worried about heat you could stick the mylar to some plastic card or something and mount it so to leave a gap between it and the mesh. I might have a go at that myself.
colinlp is offline   Reply With Quote Quick reply to this message
Old 03-23-2010, 05:27 AM   #5
Fat Guy
Wannabe Guru

Fat Guy's Avatar

PTrader: (4/100%)
Join Date: Nov 2003
Location: new york, new york
Posts: 1,464
Default

I haven't had any heat issues. Works well (better with the reflector than without). A fun project to do if you have time.
__________________
Fat Guy is offline   Reply With Quote Quick reply to this message
Old 04-20-2011, 06:31 AM   #6
sugarbyte
Planted Member

sugarbyte's Avatar

PTrader: (0/0%)
Join Date: Apr 2011
Location: Canada
Posts: 164
Default

Could the same be done with some tin foil instead of the balloon? Or is the balloon more reflective?
sugarbyte is offline   Reply With Quote Quick reply to this message
Old 04-25-2011, 04:01 PM   #7
jasonpatterson
Wannabe Guru

PTrader: (1/100%)
Join Date: Apr 2011
Location: Macedonia, OH
Posts: 1,599
Default

Quote:
Originally Posted by sugarbyte View Post
Could the same be done with some tin foil instead of the balloon? Or is the balloon more reflective?
Yes, you could use aluminum foil instead. Mylar is actually the name of the plastic film that the balloon is made of, and in this case they've aluminized the plastic to make it reflective as well. The plastic is fairly tough stuff and relatively easy to work with, unlike foil.

Google-fu tells me that the shiny side of aluminum foil is approximately 90% reflective, mylar is approximately 95% reflective, so there is a small difference between the two. Whether that 1/18th increase in reflectivity is important or not is up to you.
jasonpatterson is offline   Reply With Quote Quick reply to this message
Old 04-25-2011, 06:55 PM   #8
scabskunk
Newbie

PTrader: (0/0%)
Join Date: Apr 2011
Location: sf bay
Posts: 1
Default

so i did that a couple months ago to my 3 gallon tank. after 6months of running looked at light and the Mylar is clear. i saw a couple of tiny flakes of shiny Mylar around tank. looks like humidity and temp dissolve the metal part of the film. just a heads up
scabskunk is offline   Reply With Quote Quick reply to this message
Old 04-29-2011, 04:54 AM   #9
bustah8
Algae Grower

PTrader: (0/0%)
Join Date: Dec 2010
Location: bellingham,wa.
Posts: 80
Default

I wonder what material or process is involved to adhere the aluminum to the Mylar? If there is some type of glue used, maybe it breaks down over time. They are designed to hold Helium right? I don't know if that has anything to do with it though. I'll bet the thin aluminum gets brittle with expansion and contraction from low levels of heat over a period of time, and slowly loses purchase of the Mylar.
bustah8 is offline   Reply With Quote Quick reply to this message
Old 04-29-2011, 09:14 AM   #10
majstor76
Planted Tank Obsessed

PTrader: (0/0%)
Join Date: Jun 2010
Location: croatia
Posts: 310
Default

Another option would be to use double sided tape and roll kitchen foil over it. It has a bit better reflectivity and more durable in long term. Mylar will loose its coating over time in heat and moisture
majstor76 is offline   Reply With Quote Quick reply to this message
Old 04-30-2011, 12:59 AM   #11
bustah8
Algae Grower

PTrader: (0/0%)
Join Date: Dec 2010
Location: bellingham,wa.
Posts: 80
Default

Another option, although a bit more pricey, is Nashua foil tape. It is used primarily for duct work, is water resistant and has a short term temp rating of 200 degrees F. Goes for around $25 a roll of 2 1/2 inch x 60 yards.
bustah8 is offline   Reply With Quote Quick reply to this message
Old 11-13-2011, 05:18 AM   #12
herns
Planted Tank Guru

herns's Avatar

PTrader: (216/100%)
Join Date: May 2008
Location: Los Angeles
Posts: 2,827
Default

Quote:
Originally Posted by bustah8 View Post
Another option, although a bit more pricey, is Nashua foil tape. It is used primarily for duct work, is water resistant and has a short term temp rating of 200 degrees F. Goes for around $25 a roll of 2 1/2 inch x 60 yards.
There is a Nashua foil tape sold in e-b-a-y for $18 shipped.
herns is online now   Reply With Quote Quick reply to this message
Old 11-23-2011, 04:00 AM   #13
AccidentProne001
Algae Grower

PTrader: (0/0%)
Join Date: Nov 2011
Location: Toronto Canada
Posts: 18
Default

what about this kid of tape

http://3mcollision.com/products/deco...hite-1867.html
AccidentProne001 is offline   Reply With Quote Quick reply to this message
Old 11-23-2011, 04:45 AM   #14
Jaguar
Planted Tank Enthusiast

Jaguar's Avatar

PTrader: (1/100%)
Join Date: Oct 2011
Location: Kelowna BC, Canada
Posts: 833
Send a message via Skype™ to Jaguar
Default

I remember reading just recently that unless a reflector's surface is completely smooth, it doesn't make much of a reflector at all.. the wrinkles/creases throw the light off. I was going to put aluminum foil in my hood until I read that. You'd get extremely similar results from just using a flat white spraypaint.
Jaguar is offline   Reply With Quote Quick reply to this message
Old 11-23-2011, 06:00 AM   #15
tbarabash
Planted Tank Obsessed

PTrader: (0/0%)
Join Date: May 2011
Location: Edmonton AB Canada
Posts: 353
Default

I used tin foil... meh. Looked pretty shatty but better than nothing I guess :p
