Fluval Spec Pump Upgrade Mod! w pics!


Love the spec? Hate the flow? Look no further!

After doing a lot of research on the net, I discovered the best pump upgrade for the spec is the mini-jet 606. But one thing I was not able to find were some pics and comparisons vs the stock pump. So here it is:

First, here is the pump, brand new (cost about $22 with shipping from amazon)


Out of the box, the pump won't fit:


But fear not! Very simple: remove the back and front covers. It's very easy, they just snap off. I'm guessing it was designed that way for cleaning.

I added a slice of foam to protect the prop, but depending on your media stages you probably won't need it. I'll probably remove it my next cleaning, as the water in my pump chamber is always clean anyways.




Ok now for the fun stuff, here is a side by side comparison of the stock pump and the new pump.

It's about twice the size.

Here is the flow of the stock pump:


And... drum roll..... flow of the new pump:


Wow! Seriously wasn't expecting this much flow, soaked half my kitchen. This will put your spec on steroids, so watch for mood swings!

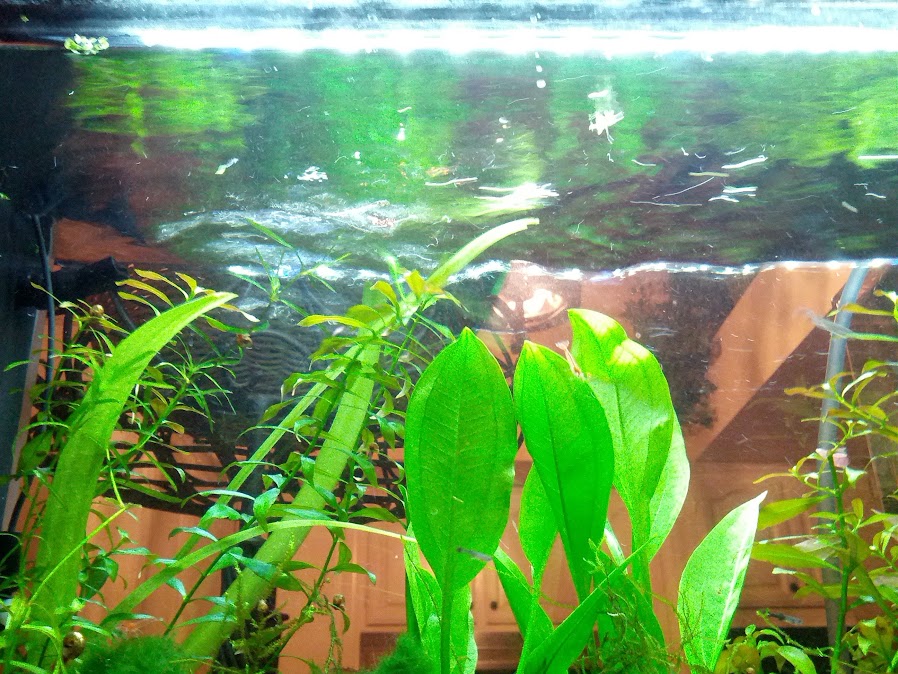

Stock flow:


Mini jet flow:



And there you have it. An awesome, cheap mod for your spec.

Some quick notes:
-You'll need to cut about an inch to inch 1/2 off the return flow tubing otherwise it will kink because the new pump is taller.
-I'm thinking about poking a hole in the return tube to circulate the pump chamber water a little bit. Definitely have enough flow for that



Anyways that's pretty much it, enjoy!
__________________
hlaalu is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 03-02-2013, 09:39 AM   #2
Bubba Shrimp
Planted Tank Obsessed

Bubba Shrimp's Avatar

PTrader: (0/0%)
Join Date: May 2012
Location: Calgary, Alberta Canada
Posts: 349
Default

Great job I like the mod
__________________
So a guy walks into a Pet Store

Guy: "I have Algae on my drift wood!"

Pet Clerk: "Take two Plecos and call me next week."



EHEIM Classic 2213
Check out my blog
tsturgeonblog.wordpress.com/
Bubba Shrimp is offline   Reply With Quote Quick reply to this message
Old 03-02-2013, 10:09 AM   #3
SpecialEffect
Algae Grower

PTrader: (0/0%)
Join Date: Dec 2009
Location: Montreal, Canada
Posts: 91
Default

I like this mod also! Its tempting me to buy a spec v!!!
The downer was the flow... But clearly you have solved that issue!!
Now thinking about my lighting hmm...
SpecialEffect is offline   Reply With Quote Quick reply to this message
Old 03-02-2013, 10:33 AM   #4
sayurasem
SCAPEr

sayurasem's Avatar

PTrader: (2/100%)
Join Date: Jun 2011
Location: Loma Linda, CA
Posts: 2,558
Default

Brilliant!
sayurasem is offline   Reply With Quote Quick reply to this message
Old 03-03-2013, 12:03 AM   #5
hlaalu
Algae Grower

hlaalu's Avatar

PTrader: (1/100%)
Join Date: Sep 2012
Location: Orange County, CA
Posts: 61
Default

Quote:
Originally Posted by Bubba Shrimp View Post
Great job I like the mod
Thanks!

Quote:
Originally Posted by SpecialEffect View Post
I like this mod also! Its tempting me to buy a spec v!!!
The downer was the flow... But clearly you have solved that issue!!
Now thinking about my lighting hmm...
I have you covered on the lighting too! I'll post a pic in a bit

Quote:
Originally Posted by sayurasem View Post
Brilliant!
It really is a must have mod, would be great for a nano reef especially.
__________________
hlaalu is offline   Reply With Quote Quick reply to this message
Old 03-16-2013, 10:07 PM   #6
bat_billy
Algae Grower

PTrader: (0/0%)
Join Date: Jun 2011
Location: US
Posts: 138
Default Re: Fluval Spec Pump Upgrade Mod! w pics!

I just did this mod and to be honest i'm not seeing much better flow. I think the problem is that there isn't enough space for the water to get around the pump housing once it is placed into the left most pump column in the filter box.
bat_billy is online now   Reply With Quote Quick reply to this message
Old 03-16-2013, 10:49 PM   #7
bat_billy
Algae Grower

PTrader: (0/0%)
Join Date: Jun 2011
Location: US
Posts: 138
Default Re: Fluval Spec Pump Upgrade Mod! w pics!

I just solved my own problem:

The issue was that the pump created a suction and slid itself up against the wall. By sliding out the suction cup bracket slightly on the bottom of the housing you can allow the bracket to create the spacing between the pump inlet and the wall. That bracket is on the pump tightly and is definetly going to hold itself in place.

Another benefit of that bracket is that by moving it in and out you can then control the flow rate of the pump.
bat_billy is online now   Reply With Quote Quick reply to this message
Old 07-28-2013, 12:00 AM   #8
Rocky5
Algae Grower

PTrader: (0/0%)
Join Date: Jul 2013
Location: Scotland
Posts: 14
Default

I done this mod, but it was noisy as hell hmmmmmmmmmmmmmmmmmhmmmmmmmmm the vibration were to loud, going from silent to that was a no go :-( though that little pump can sure pump water m
Rocky5 is offline   Reply With Quote Quick reply to this message
Old 02-04-2014, 11:16 PM   #9
jamesyu
Planted Member

PTrader: (11/100%)
Join Date: Feb 2012
Location: San Jose, CA
Posts: 247
Send a message via AIM to jamesyu Send a message via Yahoo to jamesyu
Default

question here -- this may be a dead thread, but I am interested in how the return flow settings are? I'm going to be in a pretty heavilly planted tank, but don't need things flying around. I wanted to know if the low/med/high flows were at on the return pump so I can know what to adjust the return flow on. Right now mine is on Med, but I have not filled the tank in yet.
jamesyu is offline   Reply With Quote Quick reply to this message
Old 02-04-2014, 11:28 PM   #10
bat_billy
Algae Grower

PTrader: (0/0%)
Join Date: Jun 2011
Location: US
Posts: 138
Default

I only ever used the modification on the highest setting so I have no experience using the lower settings. Sorry...
