After just over a year of research and work (never too hard) I've finally got the new tank up and running. I've had the euro braced tank custom built, constructed the tank and canopy from Cherry (first real carpentry project) and plumbed everything into the stand with the exception of the autofill solenoids and fertilizer injection.

A series of poor photos (dark out) are below, I'll describe each:

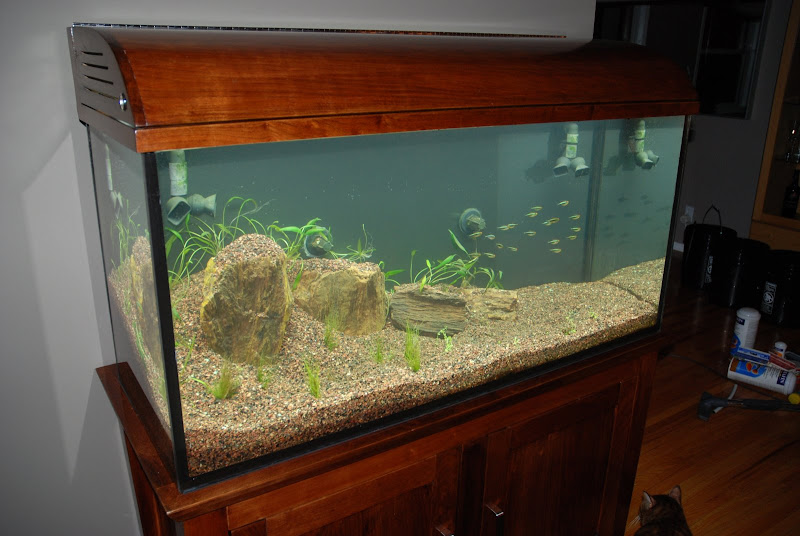

The tank is a pretty standard 48*18*about 22" eurobraced 80ish gallon tank. Its Starfire glass on the front and sides for a bit more clarity. You can see the two intakes towards the centre of the back and the outlets towards the top. The plumbing comes out the back of the tank as opposed the the bottom. The background is charcoal covered vinyl from a signmaking shop. The substrate is fluorite, getting anything else in Canada was even more expensive. The four chunks of rock are petrified wood from the Morrison formation in Utah, I bought them at a great rock store in Moab.

The stand is all solid 3/4" cherry with the exception of the plywood on the sides, bottom and back.





The curved section of canopy is built from three pieces of solid 5/8 or so Cherry and was kerfed on the backside then steamed to produce the bend. Kerfing is basically taking a saw blade out of the back and leaving in this case about 1/4 inch of thickness. Upon steaming the wood bends nicely, I then assembled the top and fibreglassed the underside to strengthen and seal it from the water.



Lights are Tek 4*54 watt screwed (yes holes in fixture) to the canopy. I went to great lengths to come up with a design that allowed me the ease of working on an open top tank without having all the light scattering into the room. I designed the setup to be such that the top of the tank edge is the height of my armpit and that I can reach the back corners while standing on a chair. There's no place in the tank that I can't reach.

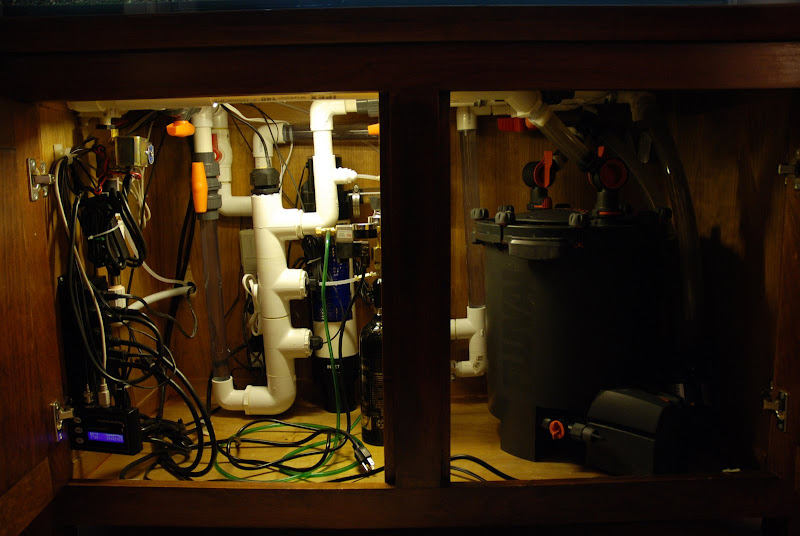

Now the plumbing end of the business. The tank outlet gets split in two, one to the Fluval FX5, the other to a Poseidon PS4 booster pump (an afterthought after discovering how much flow the plumbing consumes). The flow path is seperated into three paths of which two are removable, all three are ball valved on each end to allow for flow control and isolation should something need maintenance or modification. The paths flow from right to left. Essentially I can run the tank with a good portion of the plumbing temporarily removed.

Flowpath 1 (at the back) has:
1. pH sensor
2. UV sterilizer

Flowpath 2 (in the middle) has:
1. CO2 injection via Milwaukee regulator and paintball cylinder
2. Water filling port
3. Heater
4. Temperature sensor

Flowpath 3 (barely visible at the top of the tank):
1. Water draining equipment including solenoid and DC booster pump.

The control is run by an Aquacontroller Jr. and a DC8.

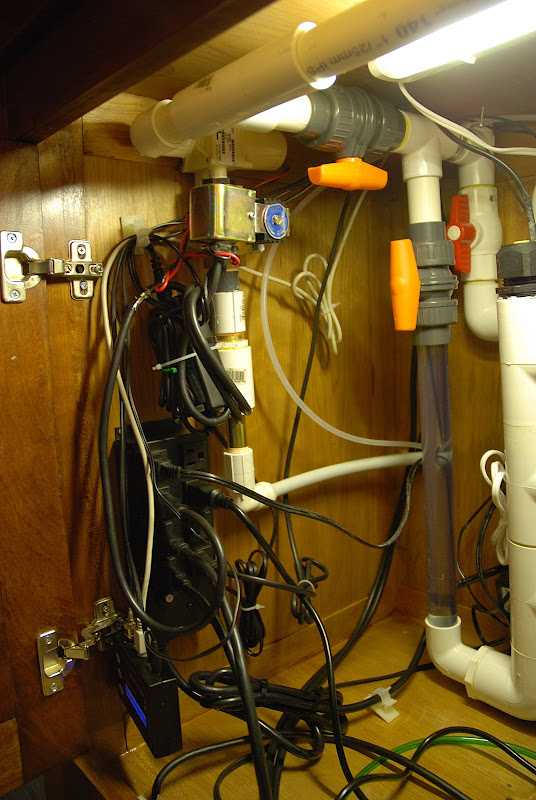

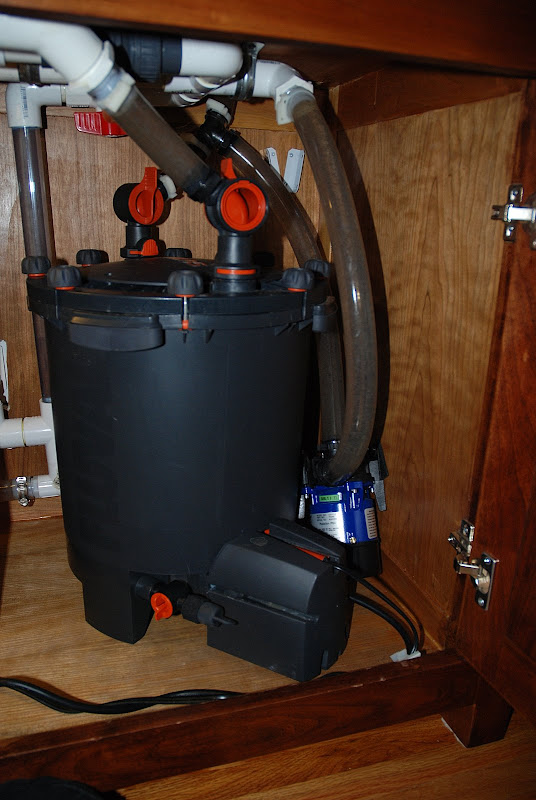

The flow comes in the back and splits into the FX5 (orange at the rear) and the Poseidon pump on the lower right of the stand. The arrangement isn't ideal but I'd done too much plumbing (read $$$) to modify it when I decided that I needed more flow. The Poseidon PS4 won't run all the time, rather I'll use it to stir detritus from the tank. The pump is incredibly quiet and I can't recommend building a system around it enough.



This is my favourite part. Automated water draining equipment. Above the solenoid in the top left of the photo is a 12V DC pump that will drain about 15 percent of the tank in 3 minutes via a 1/2 inch line plumbed in the wall to a drain in the basement. The solenoid fires, the pump fires up on a timer and that's all there is to draining.

The Aquacontroller Jr. delays filling till the draining is complete and opens the redundant 1/2 inch Dema solenoids in the basement, the line comes up to the middle flowpath as described above. Redundant float sensors in the back corners of the tank (see red wires in photo 4) stop the flow once the tank is filled. I haven't installed it yet, but I've tested a thermostatic valve that goes down to a minimum of about 85 deg F. This removes any need for a lot of heating capacity.

Special thanks to Scolley and many other high tekkies on the site for the inspiration to try to do more with the tank. Please excuse the basic planting and stocking, now I've some time to work on those skills!
