Diy 10w led - cheap! : )

My first LED setup. Hopefully someone will benefit from this!

Components from Ebay and DealExtreme.

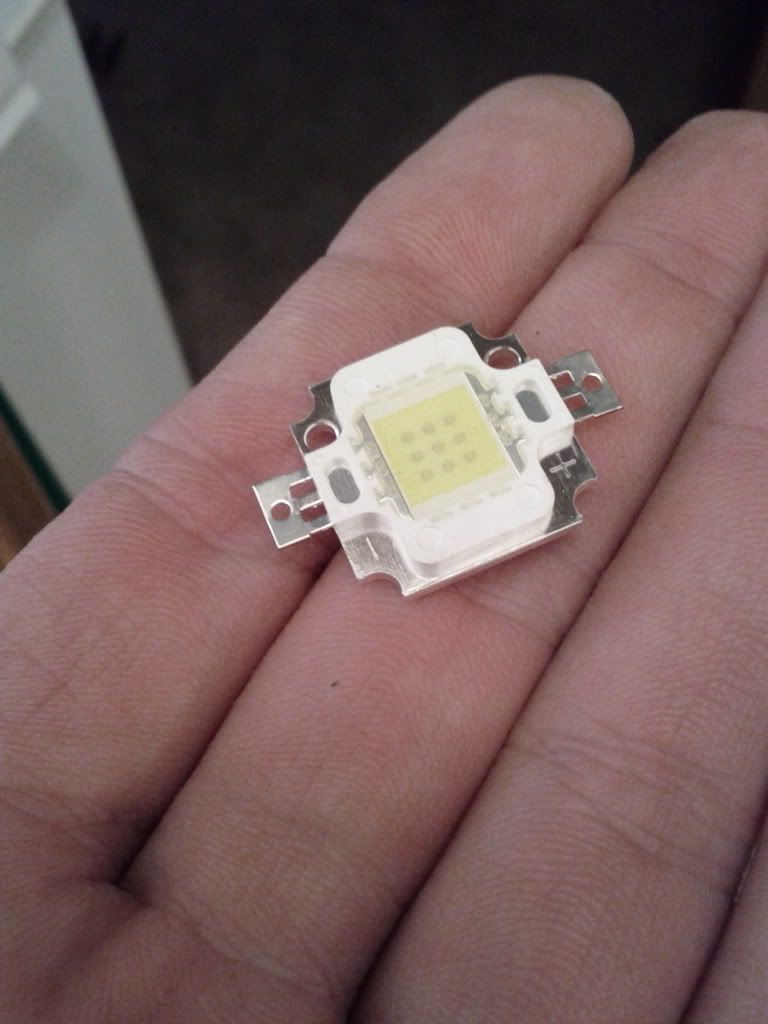

10W 7,000k LED - $8



1/2"x2"x2" Heatsink with 12V cooling fan - $5



10W 12V Driver - $7



Light housing from Lowe's - $12





11.4 gallon MR. Aqua



Power Supply for the fan was just an old 12V wireless router power supply. - $0

Grand Total: $32-ish

11.4g - Rimless Tree Scape

Last edited by Adkins.its; 04-13-2012 at 09:43 PM. Reason: More build details; added pricing;
Adkins.its is offline
Sponsored Links
Advertisement

post #2 of 22 (permalink) Old 04-13-2012, 06:58 PM
Wannabe Guru

prototyp3's Avatar

Join Date: Dec 2007
Location: Austin, TX
Posts: 1,295
Anything eBay and DIY scares me. But that looks great in that light housing. Temperature staying cool? What did the build total come to?
prototyp3 is offline
post #3 of 22 (permalink) Old 04-13-2012, 06:59 PM
Planted Tank Guru

Join Date: Jul 2008
Location: East Lansing, MI, USA
Posts: 2,710
Impressive mod.
Have you checked the temperature of the heat sink? Does it really need the fan or could a couple of vent holes in the backside of the can provide air flow?

Please let us know how it works for plants.
dbosman@msu.edu is offline
post #4 of 22 (permalink) Old 04-13-2012, 07:22 PM
Planted Tank Obsessed

carpalstunna's Avatar

Join Date: Mar 2012
Location: canton, ohio
Posts: 481
seems like a wide swath, maybe it would benefit from some optics at that height. A cheap addition. Itll work for plants, 7000K.
carpalstunna is offline
post #5 of 22 (permalink) Old 04-13-2012, 08:51 PM
Planted Tank Enthusiast

jedimasterben's Avatar

Join Date: Aug 2011
Location: Okeechobee, FL
Posts: 775
I can tell you right now, it may look like one hell of a deal, but going with a cheap chinese knockoff LED isn't going to be cheap in the long run.

These 10w LEDs put out what is listed as "600-700 lumens", which is most likely not true, as well as being 6500-7000k. That's 60-70 lumens per watt, which is very inefficient.

A single Bridgelux BXRA 950-B (another 10w LED, the LED series these guys are trying to copy) running at 500ma puts out over 1100 lumens MINIMUM. They are more powerful and more efficient than even the CREE XM-L.

The LED will burn out very quickly on that heatsink inside of that fixture. You will need to place it on a better heatsink out in the open and run a fan on it to cool it down. As you get into higher wattage LEDs, you need significantly more cooling than 3w LEDs. It will burn out in a month, and you'll be need to purchase another one and wait three weeks for it to arrive. That one will burn out in the same amount of time unless given proper cooling.

You can definitely go with cheaper options, but if it's going to cost you significantly more in the long run, why bother?


In Amber Clad a 40g reef
jedimasterben is offline
post #6 of 22 (permalink) Old 04-13-2012, 09:49 PM Thread Starter
Planted Member

Adkins.its's Avatar

Join Date: Oct 2007
Location: Fort Wayne, IN
Posts: 222
Send a message via AIM to Adkins.its
Quote:
Originally Posted by prototyp3 View Post
Anything eBay and DIY scares me. But that looks great in that light housing. Temperature staying cool? What did the build total come to?
Its really pretty basic. And The driver gets warmer than the heatsink. I have never tried to measure the temp of the heatsink. It is room temperature to the touch so I don't even worry about it. I added the total cost to the OP.

Quote:
Originally Posted by dbosman@msu.edu View Post
Impressive mod.
Have you checked the temperature of the heat sink? Does it really need the fan or could a couple of vent holes in the backside of the can provide air flow?

Please let us know how it works for plants.
Yep, its room temp. It really has to have a fan or it will get hot. vent holes would not be enough.

It has already been proven by other board members.

Quote:
Originally Posted by carpalstunna View Post
seems like a wide swath, maybe it would benefit from some optics at that height. A cheap addition. Itll work for plants, 7000K.
It could definitely use a lens or reflector.

Quote:
Originally Posted by jedimasterben View Post
I can tell you right now, it may look like one hell of a deal, but going with a cheap chinese knockoff LED isn't going to be cheap in the long run.

These 10w LEDs put out what is listed as "600-700 lumens", which is most likely not true, as well as being 6500-7000k. That's 60-70 lumens per watt, which is very inefficient.

A single Bridgelux BXRA 950-B (another 10w LED, the LED series these guys are trying to copy) running at 500ma puts out over 1100 lumens MINIMUM. They are more powerful and more efficient than even the CREE XM-L.

The LED will burn out very quickly on that heatsink inside of that fixture. You will need to place it on a better heatsink out in the open and run a fan on it to cool it down. As you get into higher wattage LEDs, you need significantly more cooling than 3w LEDs. It will burn out in a month, and you'll be need to purchase another one and wait three weeks for it to arrive. That one will burn out in the same amount of time unless given proper cooling.

You can definitely go with cheaper options, but if it's going to cost you significantly more in the long run, why bother?
Please check out the OP. There is a picture of the heatsink...with a fan.

11.4g - Rimless Tree Scape
Adkins.its is offline
post #7 of 22 (permalink) Old 04-14-2012, 06:56 PM Thread Starter
Planted Member

Adkins.its's Avatar

Join Date: Oct 2007
Location: Fort Wayne, IN
Posts: 222
Send a message via AIM to Adkins.its
Click image for larger version

Name:	uploadfromtaptalk1334426162891.jpg
Views:	169
Size:	88.3 KB
ID:	45668

11.4g - Rimless Tree Scape
Adkins.its is offline
post #8 of 22 (permalink) Old 04-14-2012, 11:49 PM
Planted Tank Guru

Hoppy's Avatar

Join Date: Dec 2005
Location: Sacramento, CA
Posts: 19,955
Referring to some LEDs as Chinese cheap knock-offs is amusing. Virtually all LEDs are made in China, as are most other electronic components. Being made in China means made in China - nothing else. The LED light I'm using now has made in China, unbranded, Ebay special LEDs, and it works fine. It has been in use about 18 months now.

Hoppy
Hoppy is offline
post #9 of 22 (permalink) Old 04-15-2012, 10:15 AM
Algae Grower

Join Date: Jul 2011
Location: Mesa, Arizona
Posts: 9
Is there a link to more pictures? I want to see how the plants are doing I really like the way the lighting looks.
PaytonGPettet is offline
post #10 of 22 (permalink) Old 04-18-2012, 01:01 AM Thread Starter
Planted Member

Adkins.its's Avatar

Join Date: Oct 2007
Location: Fort Wayne, IN
Posts: 222
Send a message via AIM to Adkins.its
Quote:
Originally Posted by Hoppy View Post
Referring to some LEDs as Chinese cheap knock-offs is amusing. Virtually all LEDs are made in China, as are most other electronic components. Being made in China means made in China - nothing else. The LED light I'm using now has made in China, unbranded, Ebay special LEDs, and it works fine. It has been in use about 18 months now.
Amen!



Quote:
Originally Posted by PaytonGPettet View Post
Is there a link to more pictures? I want to see how the plants are doing I really like the way the lighting looks.
Here is one from 10 minutes ago!
Click image for larger version

Name:	uploadfromtaptalk1334707253061.jpg
Views:	155
Size:	82.7 KB
ID:	45864
Click image for larger version

Name:	uploadfromtaptalk1334707270307.jpg
Views:	151
Size:	85.2 KB
ID:	45865

11.4g - Rimless Tree Scape
Adkins.its is offline
post #11 of 22 (permalink) Old 04-18-2012, 01:20 AM
Planted Tank Obsessed

kangshiang's Avatar

Join Date: Jun 2006
Location: Los Angeles
Posts: 451
This actually looks awesome. I like it a lot!!!!!
kangshiang is online now
post #12 of 22 (permalink) Old 04-18-2012, 11:20 AM Thread Starter
Planted Member

Adkins.its's Avatar

Join Date: Oct 2007
Location: Fort Wayne, IN
Posts: 222
Send a message via AIM to Adkins.its
Thanks!

11.4g - Rimless Tree Scape
Adkins.its is offline
post #13 of 22 (permalink) Old 04-18-2012, 04:05 PM
Are these real?

Wasserpest's Avatar

Join Date: Jun 2003
Location: Monterey, CA
Posts: 15,407
Very nice, thanks for sharing. While there might be more efficient LEDs out there, they will cost more. I think the cooling is just fine. I've got a bunch of HSF's for computers sitting around calling me to do something with them. I just don't like the light spill.

How did you attach the LED to the heat sink? Tapped the alu?
Wasserpest is offline
post #14 of 22 (permalink) Old 04-18-2012, 04:29 PM Thread Starter
Planted Member

Adkins.its's Avatar

Join Date: Oct 2007
Location: Fort Wayne, IN
Posts: 222
Send a message via AIM to Adkins.its
Quote:
Originally Posted by Wasserpest View Post
Very nice, thanks for sharing. While there might be more efficient LEDs out there, they will cost more. I think the cooling is just fine. I've got a bunch of HSF's for computers sitting around calling me to do something with them. I just don't like the light spill.

How did you attach the LED to the heat sink? Tapped the alu?
Thanks! And yes I would like to cut down on the light spill as well. I haven't been able to find a reflector for a 10W yet.

Yes, I removed the fan and tapped it. Just used a transfer punch for my centers to drill on. Obviously, I also used some thermal compound between them.

11.4g - Rimless Tree Scape
Adkins.its is offline
post #15 of 22 (permalink) Old 04-26-2012, 01:30 AM
Planted Tank Obsessed

limz_777's Avatar

Join Date: Jun 2005
Location: globe
Posts: 434
any update on the growth ?
limz_777 is offline
Reply
